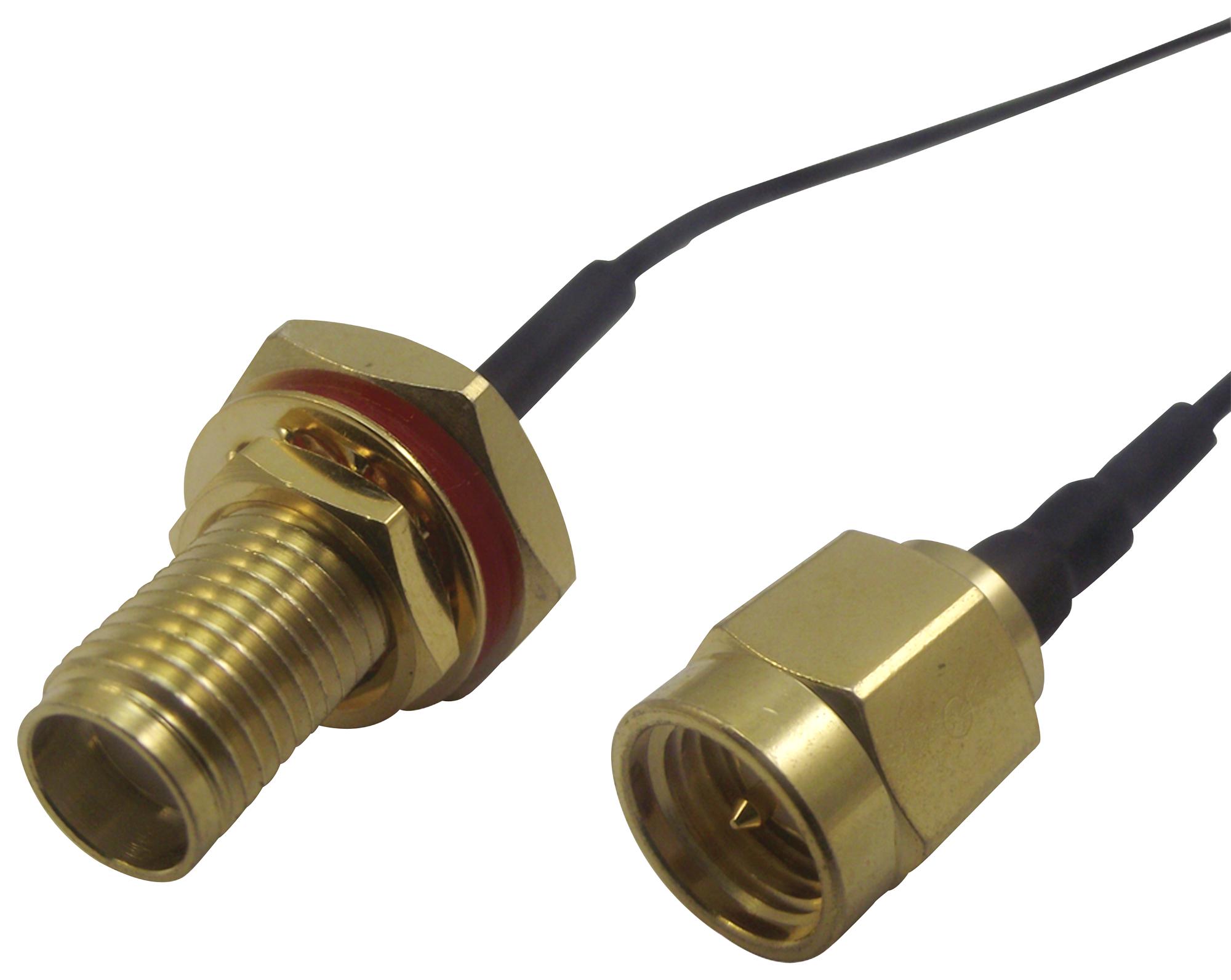

MULTICOMP PRO MC000786 RF Coaxial Cable Assembly

The MC000786 is a 100mm IP67-rated RF coaxial cable assembly featuring an SMA bulkhead jack and an SMA straight plug connector. It uses a 1.37mm low-loss micro coaxial cable with a 50Ω impedance, suitable for outdoor RF communication applications. The cable supports a frequency range from DC to 3 GHz, with a maximum working voltage of 335 Vrms and dielectric withstand voltage of 750 Vrms. It has an insulator resistance of at least 5 million ohms, a maximum Voltage Standing Wave Ratio (VSWR) of 1.4:1, and an insertion loss of up to -0.8dB. The sheath is black, designed to operate within temperatures from -20°C to +70°C, and provides IP67 waterproof protection.

View MC000786Datasheet [pdf]

Buy the Buy Multicomp RF Cable Assembly Part Number MC000786 Online

Purchase the Multicomp RF Coaxial Cable Assembly MC000786 online today and experience reliable outdoor RF communication. This durable assembly features an IP67 waterproof rating, making it ideal for harsh environments. Its 50Ω impedance supports DC to 3 GHz frequency range, ensuring optimal signal quality. With a compact 100mm length, black sheath, and high dielectric withstand voltage, it promises long-lasting performance. Perfect for outdoor installations requiring robust and efficient RF signal transmission with minimal loss and excellent durability.

Get Multicomp RF Cable Assembly MC000786 today—designed for outdoor RF communication with waterproof IP67 protection and excellent low-loss performance.
