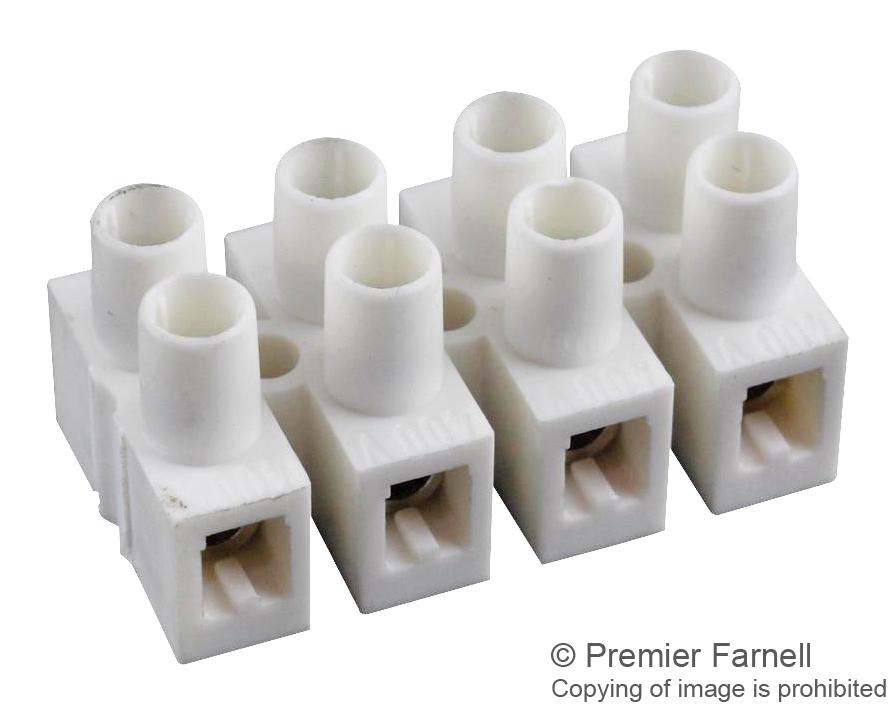

MULTICOMP-PRO MC001825 Dual-Row Terminal Block
The MC001825 from Multicomp Pro is an H-type dual-row terminal block with an 8-pole configuration, 10mm pitch, and rated for 30A at 600V. Constructed with a flame-retardant PA66 (UL94-V0) housing, it is suitable for wire sizes from 12AWG to 22AWG and can operate within a temperature range of -30°C to +105°C. It features a minimum insulation withstand voltage of 2000VAC, high insulation resistance exceeding 2000 MΩ at 500VDC, and zinc-plated steel screws for durability. Its robust design ensures reliable connections in industrial environments, making it ideal for various electrical and automation applications.
MULTICOMP-PRO MC001825 Dual-Row Terminal Block Specifications:
- Current Rating: 30A
- Voltage Rating: 600V
- Wire Range: 12AWG to 22AWG
- Temperature Range: -30°C to +105°C
- Insulation Withstand Voltage: 2000VAC min
- Insulation Resistance: >2,000MΩ at 500VDC
- Housing Material: PA66 (UL94-V0)
- Housing Color: White
- Screw Material: Steel, Zinc-Plated
- Poles: 8
- Pitch: 10mm
- Screw Type: Steel Zinc Plate
Buy the Multicomp Series Dual-Row Terminal Block: MC001825
Enhance your electrical assembly with the Multicomp MC001825 dual-row terminal block, offering 8 poles, a 10mm pitch, and rated for 30A at 600V. Crafted with durable PA66 housing and zinc-plated steel screws, it ensures reliable connections even in demanding industrial environments. The component supports wire sizes from 12AWG to 22AWG and operates within a temperature range of -30°C to +105°C. Its high insulation withstand voltage and resistance make it ideal for automation, control panels, and wiring applications. Purchase online now for dependable performance and quick delivery.
Buy Multicomp MC001825 now and experience reliable, high-performance electrical connections for industrial automation and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001825?
You can click on the BUY or RFQ button to purchase MC001825 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001825?
You can download the MC001825 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001825?
MULTICOMP-PRO
