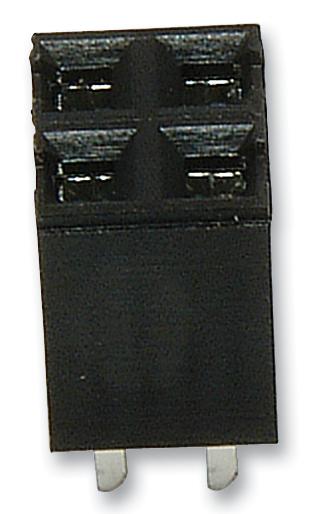

MULTICOMP-PRO 2214S10SG85 PCB Connector
The 2214S series from Multicomp Pro includes double-row PCB connectors with a 2.54mm pitch and vertical mounting options, suitable for industrial applications. Crafted from high-temperature plastic with copper alloy contacts, these connectors are selectively gold-plated for enhanced durability. They support currents up to 3A and voltages up to 250VAC/DC, operating effectively within -40°C to 105°C. With 2 to 24 contacts, a contact resistance of 20 milliohms, and insulation resistance reaching 1000 megaohms, they ensure reliable connections. Optional header height is 8.5mm, making them versatile for many circuit board configurations.
MULTICOMP-PRO 2214S10SG85 PCB Connector Specifications:
- Series: 2214S
- Connector Type: Board to Board
- Pitch Spacing: 2.54mm
- No. of Rows: 2
- No. of Contacts: 2 to 24
- Gender: Receptacle
- Contact Termination: Solder
- Contact Resistance: 20mΩ
- Current Rating: 3A
- Insulation Resistance: 1000MΩ
- Operating Temperature: -40°C to +105°C
- Voltage Rating: 250VAC/DC
- Withstand Voltage: 600V
- Material: High-Temperature Plastic and Copper Alloy
- Contact Finish: Selective Gold Plated
- Header Height: Optional 8.5mm
Buy the Multicomp Series 2214S PCB Connector: 2214S10SG85
Enhance your circuit boards with the robust and reliable Multicomp Series 2214S PCB connectors. Featuring a 2.54mm pitch, double-row configuration, and vertical mount design, these connectors support up to 3A and 250VAC/DC ratings. Constructed from durable high-temperature plastic with gold-plated contacts, they operate efficiently between -40°C and 105°C. With 2-24 contact options, an insulation resistance of 1000 megaohms, and optional header height of 8.5mm, they are perfect for industrial and electronic applications, ensuring secure and long-lasting electrical connections.
Order your Multicomp Series 2214S PCB connector today and ensure reliable, durable connections for your industrial projects, with high-quality construction and versatile options.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2214S10SG85?
You can click on the BUY or RFQ button to purchase 2214S10SG85 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2214S10SG85?
You can download the 2214S10SG85 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2214S10SG85?
MULTICOMP-PRO
