MULTICOMP-PRO MC002039 RF Connector

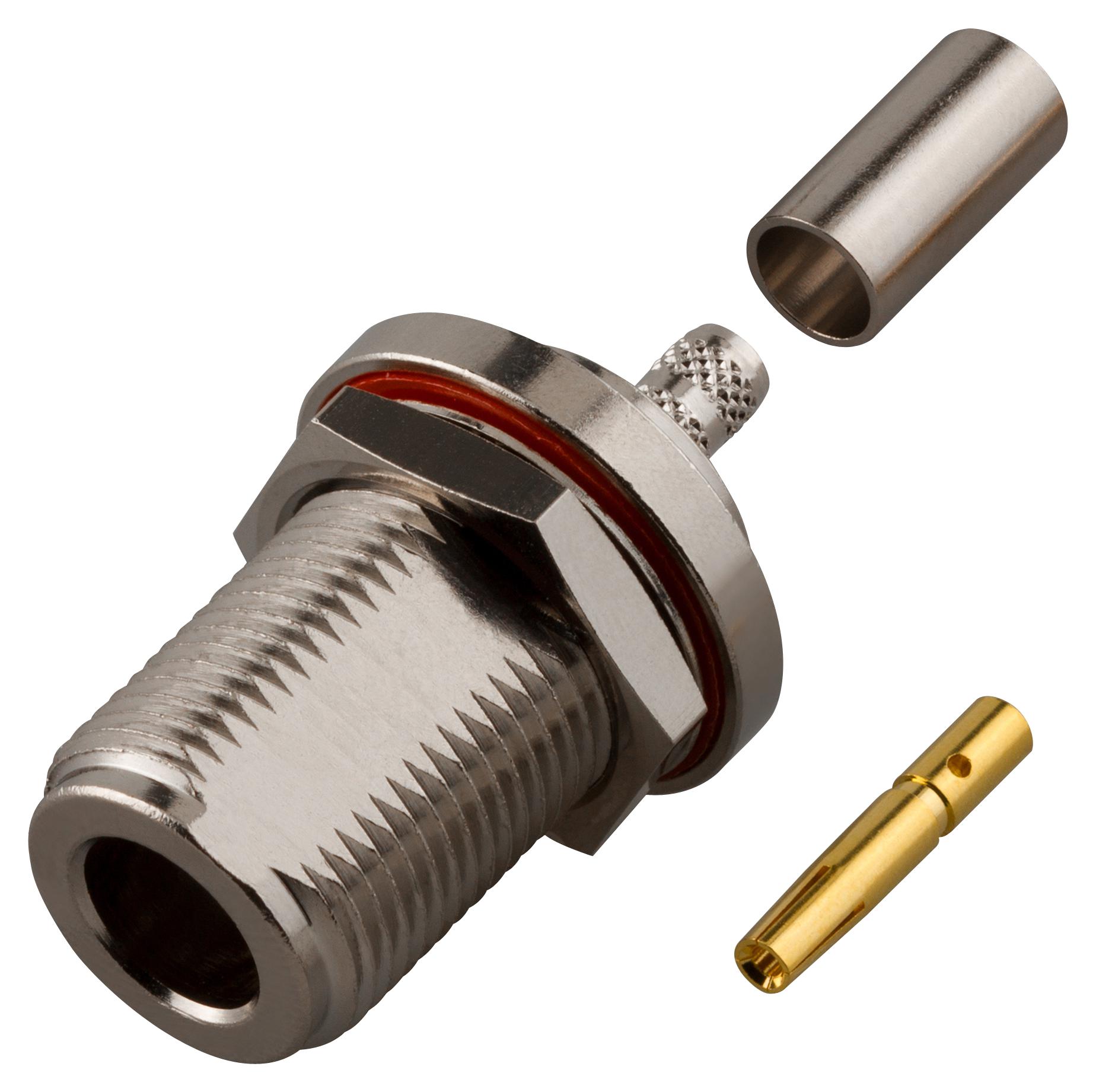

This N Female Bulkhead Crimp connector is designed for high-performance RF applications with impedance of 50 ohms, suitable for frequencies up to 11 GHz. Made from durable brass with nickel plating, it features a PTFE insulator for excellent insulation resistance and thermal stability. The connector supports working voltages of 1k Vrms and is compatible with RG-58, 58A, 58C, 141, 141A cables, among others. Its robust construction ensures reliable connections in demanding environments, making it ideal for communication and electronic projects requiring secure, high-frequency connections.
MULTICOMP-PRO MC002039 RF Connector Specifications:
- Impedance: 50 Ω
- Frequency Range: 0-11 GHz
- Vswr: 1.3 Max.
- Insertion Loss: 20.06 dB Max. x GHz
- Working Voltage: 1k Vrms @ Sea Level
- Temperature Range: -65°C to +165°C
- Insulation Resistance: 5kMQ Min.
- Material: Body and Ferrule - Brass Nickel-plated, Pin - Phos Bronze Gold-plated, Insulator - PTFE, Gasket - Silicone, Lock Washer, Hex Nut - Brass Nickel-plated
- Dimensions: Detailed in datasheet, suitable for RG-58 series cables
- Applicable Cables: RG-58, 58A, 58C, 141, 141A, Belden 8240, 8262, 9201, 9203, 9310, 9311 & Comm/Scope 0268
Buy the Buy Multicomp RF Connector Part Number MC002039 Online
Secure your high-frequency RF connections with the durable and reliable N Female Bulkhead Crimp connector from Multicomp. Designed for frequencies up to 11 GHz, it features a robust brass body with nickel plating and a PTFE insulator for excellent insulation resistance. Compatible with RG-58 series cables, it supports voltages of 1k Vrms, making it suitable for demanding communication and electronic systems. Easy to install, this connector guarantees stability and performance in various environments, helping you complete professional-grade projects efficiently.
Order your Multicomp Series MC002039 N Female Bulkhead Crimp connector today and ensure reliable high-frequency connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002039?
You can click on the BUY or RFQ button to purchase MC002039 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002039?
You can download the MC002039 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002039?
MULTICOMP-PRO
