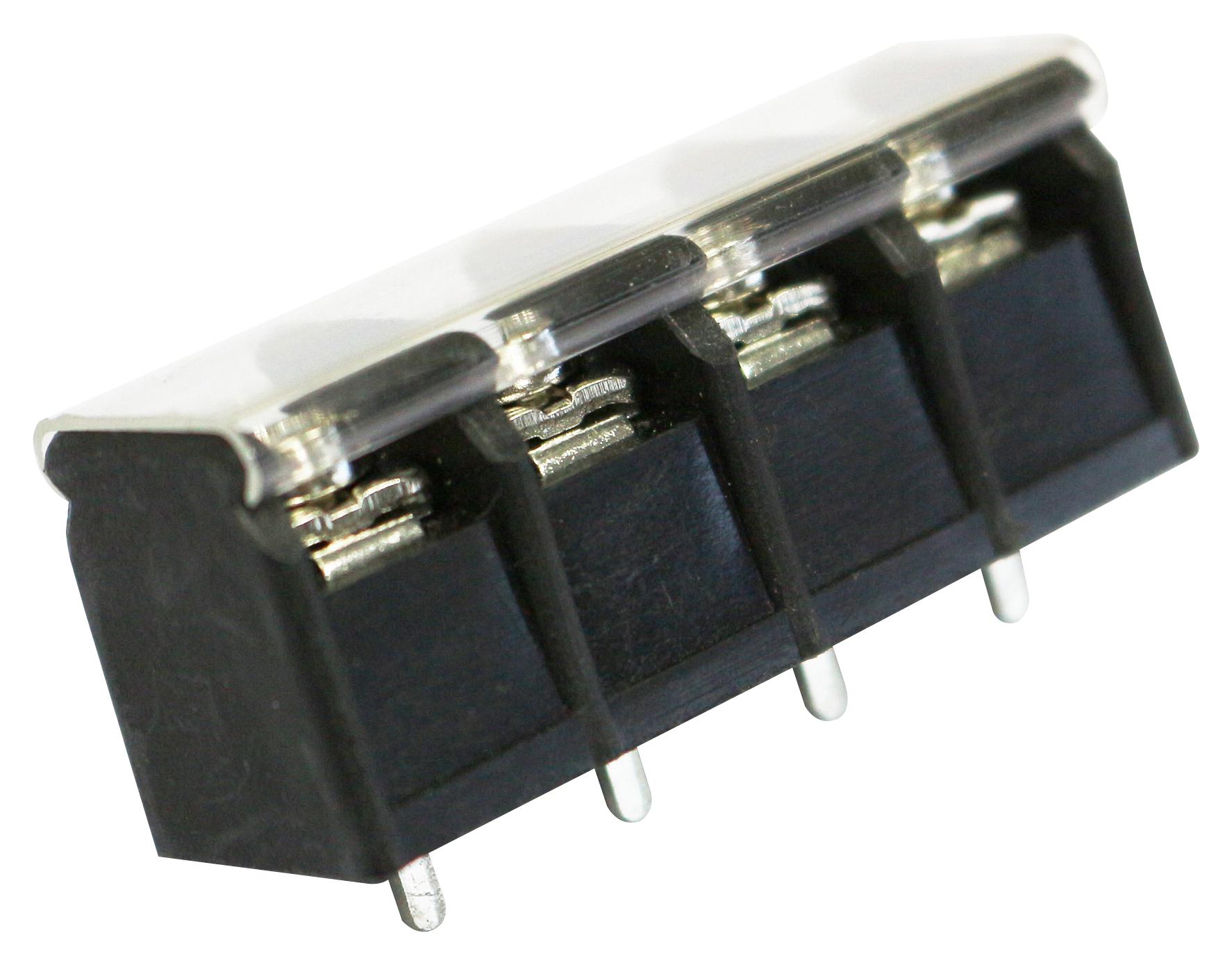

MULTICOMP-PRO MC002083 Barrier Terminal Block
Barrier terminal blocks with 10mm pitch are designed for secure wiring connections in electrical panels and control cabinets. Rated for 20A and 300V, these blocks feature an insulating body made of black PBT (UL94V-0), brass contacts with tin plating, and steel screws to ensure durability and corrosion resistance. They accommodate wire sizes from 14AWG to 22AWG, with a pitch of 10mm and various pole options. Equipped with covers for added protection, these terminal blocks are RoHS compliant and operate reliably between -40°C and +120°C, suitable for industrial wiring applications.
MULTICOMP-PRO MC002083 Barrier Terminal Block Specifications:
- Current Rating: 20 Amp AC300V
- Insulation withstands Volt: AC2000V minimum
- Insulation Resistance: >2000MQ at 500V DC
- Operation Temperature: -40°C to +120°C
- Wire Range: 14AWG to 22AWG
- Wire Diameter: 1.6mm to 2.8mm
- Material: Insulating body made of PBT (UL94V-0), black
- Contact Material: Brass, tin plated
- Screw Material: Steel, nickel plated
- Screw Torque: 16 lb-inch
- Pitch: 10mm
- Poles: 2, 3, 5, 7, 9
- Dimensions vary by poles, e.g., 21.8mm for 2 poles, 31.8mm for 3 poles, etc.
- RoHS Compliant
Buy the Multicomp Series Terminal Blocks: Barrier Terminal Block 10mm: MC002083
Enhance your electrical wiring with Multicomp Series barrier terminal blocks. Rated for 20A and 300V, these 10mm pitch blocks provide secure, insulated connections with covers for safety. Made with durable materials like UL94V-0 PBT, brass contacts, and steel screws, they ensure longevity and corrosion resistance. They support wire sizes from 14AWG to 22AWG and operate effectively across a broad temperature range from -40°C to +120°C. Perfect for industrial control panels and electrical installations, these connectors are RoHS compliant, easy to install, and come in various pole configurations for versatile applications.
Order your Multicomp Series terminal block MC002083 today and secure reliable wiring connections for your electrical projects.
