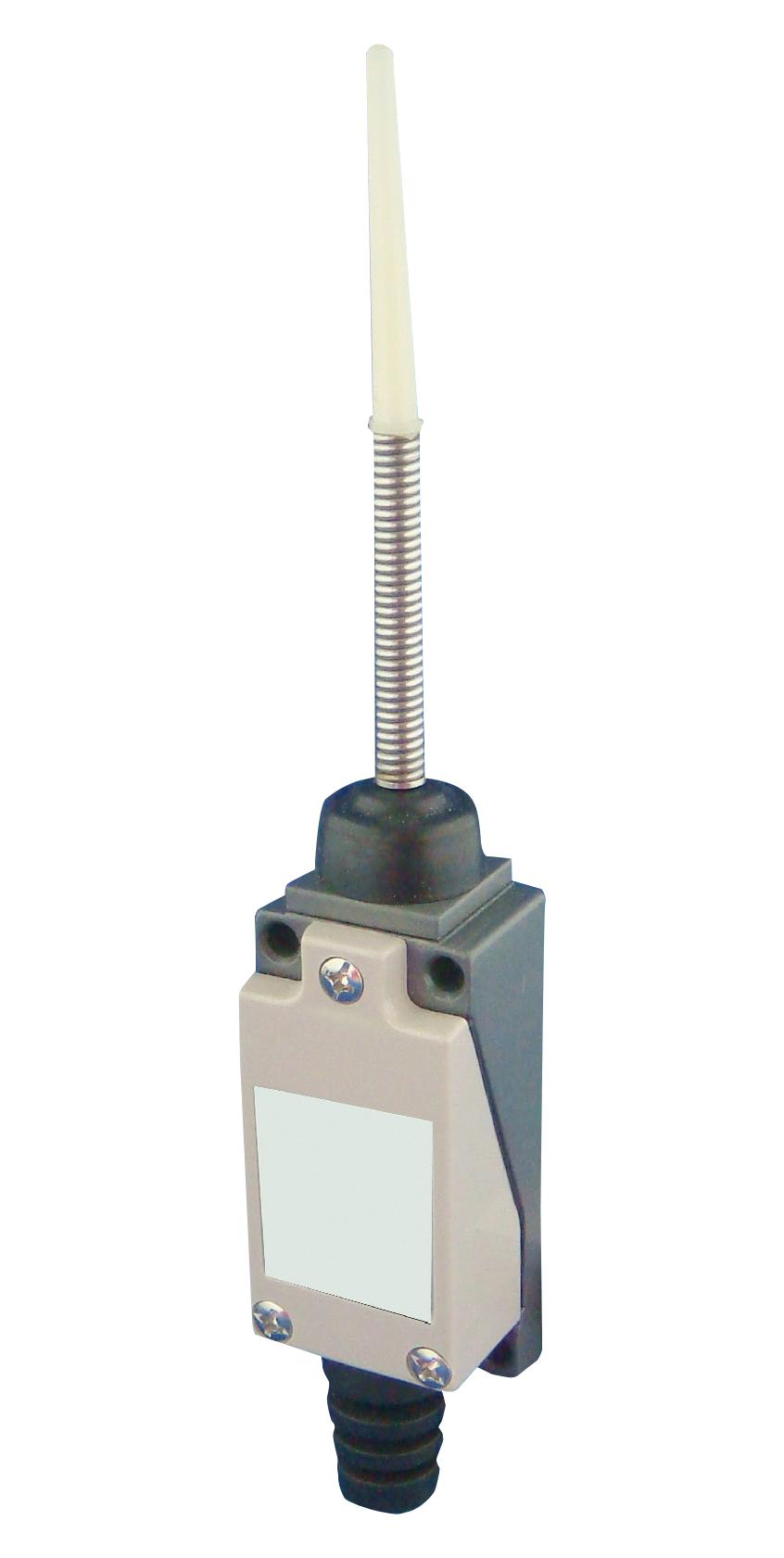

MULTICOMP PRO MC002427 Miniature Limit Switch
Miniature enclosed limit switches are compact, IP65-rated devices designed for reliable operation in industrial environments. They feature sealed plungers such as push, roller, and crossroller types, offering enhanced durability and protection against dust and water. Perfect for automation, machinery, and control systems, these switches operate with precise force and travel specifications, supporting high durability with mechanical life up to 10 million operations. Their robust construction and various lever options make them suitable for diverse industrial applications requiring dependable limit detection and switch longevity.
MULTICOMP PRO MC002427 Miniature Limit Switch Specifications:
- Degree of protection: IP65
- Rated voltage: 250V AC / 15A, 125V DC / 0.4A
- Mechanical operations: 10,000,000 min.
- Electrical operations: 300,000 min.
- Operating Speed: 5mm ~ 0.5m/s
- Operating Force: 9.8N (max), 5.88N (min)
- Release Force: 2.94N (min), 0.49N (max)
- Pre Travel: 1.5mm
- Over Travel: 4mm
- Operating Temperature Range: -20°C to +60°C
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 1,500V AC between current-carrying metal parts and ground
- Vibration Resistance: 10-55Hz, 1.5mm double amplitude
- Shock Resistance: 1,000m/s² min.
- Operation Frequency: Mechanical 120 ops/min., Electrical 30 ops/min.
- Pollution Degree: 3
- Rated Insulation Voltage: 250V
- Rated Thermal Current: 5A
Buy the Multicomp U2022 Miniature Limit Switches – Reliable IP65 Encased Switches for Industrial Applications
Purchase your Multicomp Series MC002427 miniature limit switch online today and benefit from reliable IP65-rated protection, high durability with up to 10 million mechanical operations, and versatile lever options including sealed plungers and adjustable rods. These rugged switches are ideal for demanding industrial environments, offering precise travel and force specifications, vibration and shock resistance, and a wide operating temperature range. Enhance your automation and control systems now by choosing these dependable, easy-to-install limit switches that guarantee long-term operational excellence.
Order your Multicomp Series MC002427 miniature limit switch today and ensure dependable performance in your control systems and automation projects.
