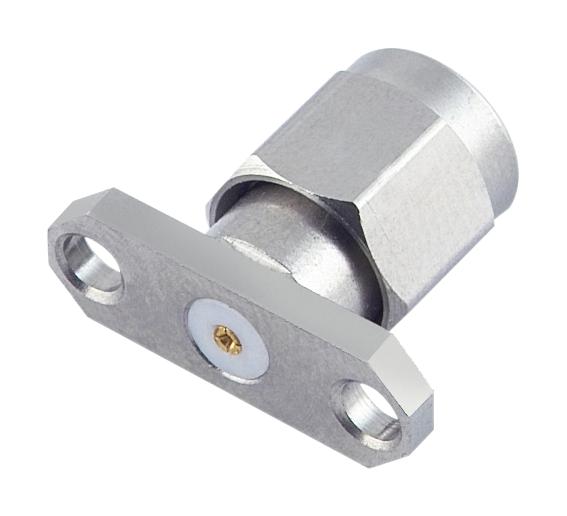

MULTICOMP PRO MC002939 RF Connector
This Straight SMA 2-Hole Flange Mount Field Plug Receptacle is designed for high-frequency applications up to DC 26.5GHz, featuring a stainless steel body and beryllium copper center contact for durability and performance. It complies with MIL-STD-348A interface standards, supports a maximum voltage of 500V, and has a VSWR of 1.17 max. With PTFE insulation, stainless steel shells, and precise torque recommendations, it ensures reliable connections in demanding environments, operating efficiently from -55°C to +165°C. An ideal choice for RF and microwave installations requiring robust, voltage-rated connectors.
MULTICOMP PRO MC002939 RF Connector Specifications:
- Connector Body Style: Straight SMA 2-Hole Flange Mount
- Frequency Range: DC 26.5GHz
- Nominal Impedance: 50 Ohms
- Voltage Rating: 500V Max.
- VSWR: 1.17 Max. @ 18GHz, 1.21 Max. @ 26.5GHz
- Bodies: Stainless Steel per JIS SUS-303
- Centre Contact: Beryllium Copper per ASTM B196 UNS C17300, Gold 50u" Min.
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Interface: MIL-STD-348A
- Recommended Coupling Torque: 7 to 10 in-Ibs
- Operating Temperature: -55°C to +165°C
- Gasket: Silicone Red
- Shell: Stainless Steel with Gold finish (3µ" Min.)
- Material Finish/Color: Various as specified
- Dimensions & Material specifications are based on detailed engineering standards
Buy the Multicomp SMA – Reliable RF Connector for Industrial Applications
Shop the multicomp SMA 2-Hole Flange Mount Field Plug Receptacle online and enjoy fast delivery. Designed for high-frequency applications up to 26.5GHz, it features a stainless steel body, PTFE insulation, and beryllium copper contact for maximum reliability. Perfect for RF and microwave connections, ensuring low VSWR performance and robust environmental resilience. Secure quick online purchase to enhance your antenna systems, test setups, and industrial communication equipment with top-tier connectors built for demanding environments.
Buy multicomp SMA Flange Mount Receptacle now and experience unmatched durability and high-frequency performance for your RF projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002939?
You can click on the BUY or RFQ button to purchase MC002939 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002939?
You can download the MC002939 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002939?
MULTICOMP PRO
