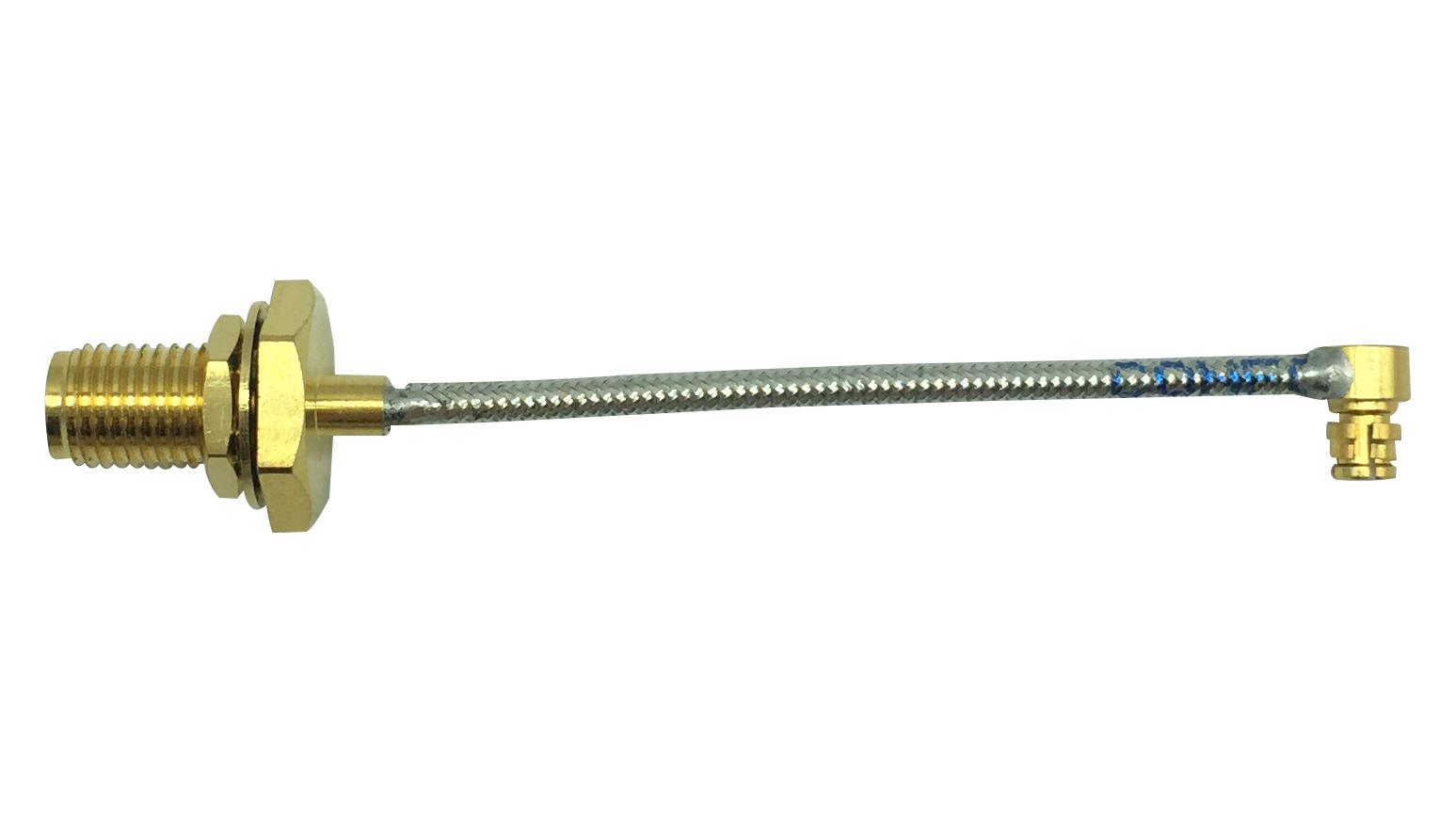

MULTICOMP PRO MC002995 RF Cable Assembly
This RF cable assembly features an SMA straight bulkhead jack and SMP right-angle jack, ideal for high-frequency applications up to 13.5GHz. The assembly uses RG-405 cable with a 65mm length, offering excellent impedance matching and low VSWR. It provides robust durability with 500 mating cycles, and components are gold-plated beryllium copper and brass for optimal conductivity. The assembly is RoHS compliant, with a voltage rating of 335V RMS, and features a PTFE dielectric for enhanced performance. Perfect for RF interconnections in communication systems, test equipment, and aerospace applications.
MULTICOMP PRO MC002995 RF Cable Assembly Specifications:
- Cable Length: 65mm / 2.56 inches
- Connector Type A: SMA Straight Bulkhead Jack
- Connector Type B: SMP Right Angle Jack
- Cable Type: RG-405
- Impedance: 50Ω
- Frequency Range: Up to 13.5GHz
- VSWR: 1.1@1GHz
- Return Loss: 26.444dB@1GHz
- Voltage Rating: 335V RMS
- Insulation Resistance: 1000MQ Min.
- Dielectric Withstanding Voltage: 500V AC / 1 min.
- Connector Contact Resistance: Centre: 3mΩ Max., Outer: 2mΩ Max.
- Contact Resistance (Outer Contact): 6mΩ Max.
- Mating Cycles: 500 times
- Body Material: Beryllium Copper/Brass, Gold Plated
- Centre Contact Material: Beryllium Copper, Gold Plated
- Insulating Material: PTFE
- Durability: 500 mating cycles
- RoHS Compliant: Yes
Buy the Buy Multicomp RF Cable Assembly Part Number MC002995 Online
Purchase the Multicomp RF Cable Assembly with SMA straight bulkhead and SMP right-angle jack online for high-frequency applications up to 13.5GHz. This durable, RoHS-compliant assembly features RG-405 cable, gold-plated contacts, and PTFE dielectric for optimal performance. It supports 500 mating cycles and provides excellent impedance matching with low VSWR and return loss. Perfect for communication systems, test equipment, aerospace, and RF applications, ensuring reliable and consistent connectivity in professional and industrial environments.
Order your Multicomp RF Cable Assembly MC002995 today and ensure reliable high-frequency connections for your communication and testing projects.
