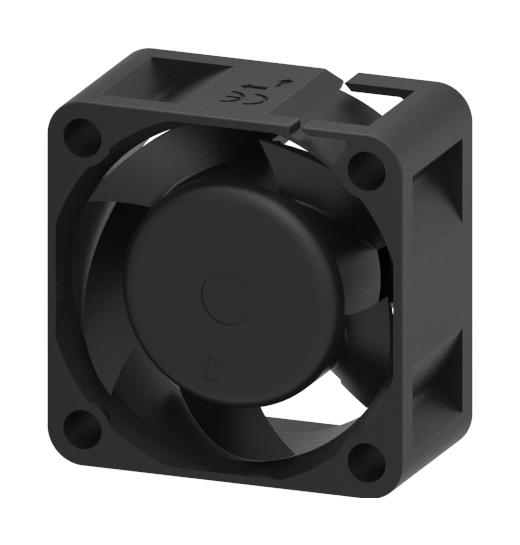

MULTICOMP PRO MP006485 Brushless DC Fan
This high-performance brushless DC fan features a Vapo bearing system for enhanced reliability. Operating at 24V DC with dimensions of 40mm x 40mm x 20mm, it offers a rated speed of 8000 RPM plus 15%. It delivers an airflow of 10.8 CFM, static pressure of 0.29 Inch-H2O, and operates efficiently within a temperature range of -10°C to +70°C. Its thermoplastic PBT frame and fan blades ensure durability, while safety features include automatic restart and polarity protection, making it ideal for cooling applications demanding long life and consistent performance.
MULTICOMP PRO MP006485 Brushless DC Fan Specifications:
- Motor Design: Single phase, 4-poles Brushless DC motor
- Bearing System: Vapo bearing system
- Materials of Frame: Thermoplastic PBT of UL 94V-0
- Materials of Fan Blade: Thermoplastic PBT of UL 94V-0
- Direction of Rotation: Counter-Clockwise Viewed From Front of Fan Blade
- Mounting Holes Diameter: 4.3 mm in 4 Holes
- Weight: 29g
- Rated Voltage: 24V DC
- Rated Current: 39 mA/ Max. 45 mA
- Rated Power Consumption: 0.94 Watts / Max. 1.08 Watts
- Operating Voltage Range: 8V DC to 27.6V DC
- Starting Voltage: 8V DC (25°C Power on/off)
- Operating Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +70°C
- Rated Speed: 8000 RPM + 15%
- Air Flow: 10.8 CFM
- Static Pressure: 0.29 Inch-H2O
- Acoustic Noise: 27.5 dB (A)
- Insulation Class: UL Class A
- Dielectric Strength: Applied AC 500V for one minute or AC 600V for 2 seconds
- Life Expectancy: 60,000 Hours at 40°C, 65% humidity, 90% CL
- Protection: Automatic Restart, Polarity Protection
Buy the Multicomp Series Brushless DC Fan: MP006485
Purchase the Multicomp Brushless DC Fan MP006485 online today to ensure your cooling system benefits from high efficiency, long life, and safety features. Designed with a Vapo bearing system and thermoplastic frame, this fan delivers a reliable airflow of 10.8 CFM at 8000 RPM, operating safely within a wide voltage and temperature range. Perfect for industrial cooling applications, it combines durability, low noise, and automatic restart safety features, making it an excellent choice for electronics cooling or industrial ventilation needs.
Buy Multicomp Series MP006485 now and experience unmatched reliability and performance with durable Vapo bearing technology for continuous cooling.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006485?
You can click on the BUY or RFQ button to purchase MP006485 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006485?
You can download the MP006485 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006485?
MULTICOMP PRO
