MULTICOMP PRO MC003315 Thin Film Chip Resistor
These are high-precision thin film chip resistors with very tight tolerance of 0.1% and low TCR, designed for compact applications. They feature advanced thin film technology on an alumina substrate, with multiple electrodes and barrier layers for durability and accuracy. Sized 0201 (0603), they handle specific operating voltages and overloads, and conform to RoHS standards. Typical dimensions include a length of 0.58 ±0.05 mm and width of 0.29 ±0.05 mm, suitable for precise, miniature electronic circuits requiring stability and reliability over temperature ranges from -55°C to +125°C. They are extensively tested for environmental resilience, including short-term overload, insulation resistance, endurance, and solderability, making them ideal for modern high-density electronic assemblies.
MULTICOMP PRO MC003315 Thin Film Chip Resistor Specifications:
- Size: 0201 (0603)
- Dimensions: Length 0.58 ±0.05 mm, Width 0.29 ±0.05 mm
- Resistance Tolerance: 0.1%
- Resistance Range: 49.90 Ω to 33 kΩ (varies by model)
- Temperature Coefficient (TCR): #50ppm or better, +25/-55°C to +125°C
- Power Rating: 1/32 W (0.031 W)
- Max Operating Voltage: 15V to 30V depending on resistance
- Overload Voltage: 2.5 x V (P x R) or max voltage
- Environmental: UL 94V-0 flammability, MIL-STD-202 tested (short overload, insulation, endurance, damping heat)
- Materials: Alumina substrate, barrier layers, external electrodes
- RoHS Compliant, RoHS standards
- Resistant to Soldering Heat (260°C for 10 seconds), good solderability over 95% coverage
- Operational Temperature Range: -55°C to +125°C
- Storage Conditions: 15-28°C, humidity < 80%RH
- Number of Reflow Cycles: 3 time limit

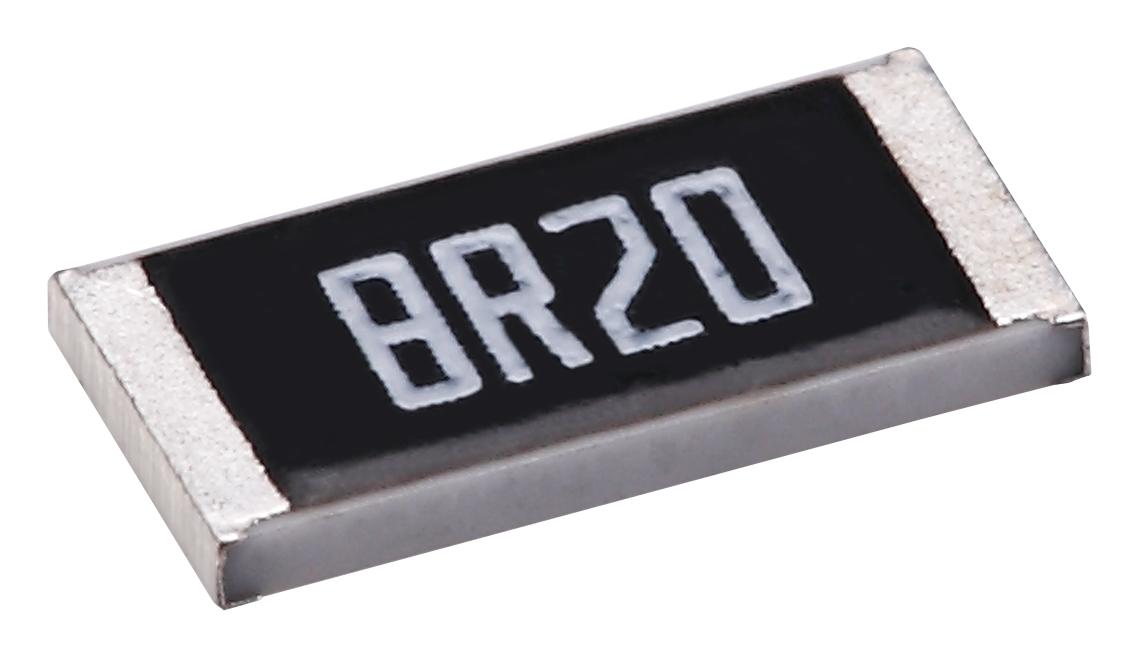

Buy the Buy Multicomp Thin Film Chip Resistors Part Number MC003315 Online
Purchase the Multicomp MC003315 thin film chip resistor online today to enjoy high-precision, low tolerance, and stable resistance for your compact electronic designs. Designed with advanced thin film technology on alumina substrates, these resistors provide excellent temperature stability and durability. Perfect for high-density boards, they are RoHS compliant and tested extensively for environmental resilience including overload, insulation, endurance, and solderability. Ensure your projects meet industry standards with a reliable, miniature component suited for demanding applications requiring precision and stability over temperature ranges from -55°C to +125°C.
Get Multicomp MC003315 today—built for high precision, low TCR, and reliable performance in miniature electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC003315?
You can click on the BUY or RFQ button to purchase MC003315 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC003315?
You can download the MC003315 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC003315?
MULTICOMP PRO
