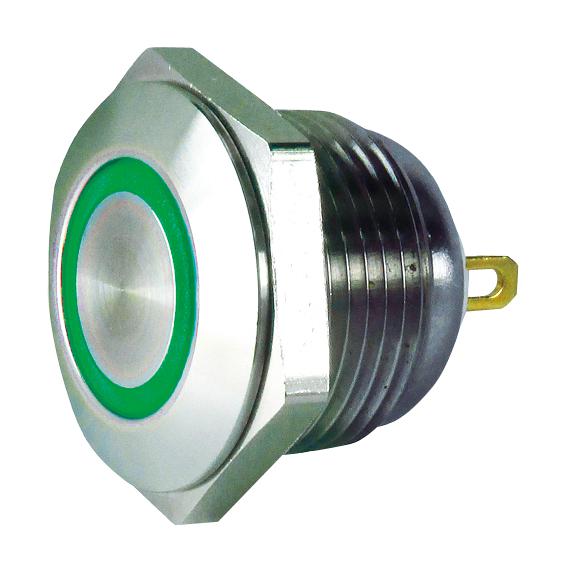

MULTICOMP PRO MC010876 Vandal Resistant Switch
The illuminated vandal resistant switch offers robust construction with stainless steel material, rated for 48V DC and an operating temperature range of -30°C to +50°C. It features LED indicators with colors including green, red, and blue, and is available in various contact configurations such as momentary and maintained. Designed for panel cut-outs of 16mm diameter, it provides high dielectric strength, low contact resistance, and excellent vibration and shock resistance. This switch is suitable for demanding industrial environments requiring durable, vandal-resistant control components.
MULTICOMP PRO MC010876 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC / min between live part and ground, 1000V AC / min between terminals of same poles
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/s² operating, 500 m/s² damage limit
- Mechanical Life: 1,000,000 momentary, 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Buy multicomp Illuminated Vandal Resistant Switch Part Number MC010876 Online
Purchase the durable vandal resistant switch online today. This stainless steel control component features LED indicators in multiple colours, high dielectric strength, and excellent resistance to vibration and shock. Ideal for industrial environments, it provides reliable switch operation with a long mechanical and electrical lifespan. Featuring various contact configurations and suitable for panel cut-outs of 16mm, this switch ensures optimal performance in demanding applications. Secure your order now for quality and dependable operation.
Buy multicomp MC010876 now and experience reliable vandal-resistant switching with vibrant LED indicators and exceptional durability in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010876?
You can click on the BUY or RFQ button to purchase MC010876 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010876?
You can download the MC010876 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010876?
MULTICOMP PRO
