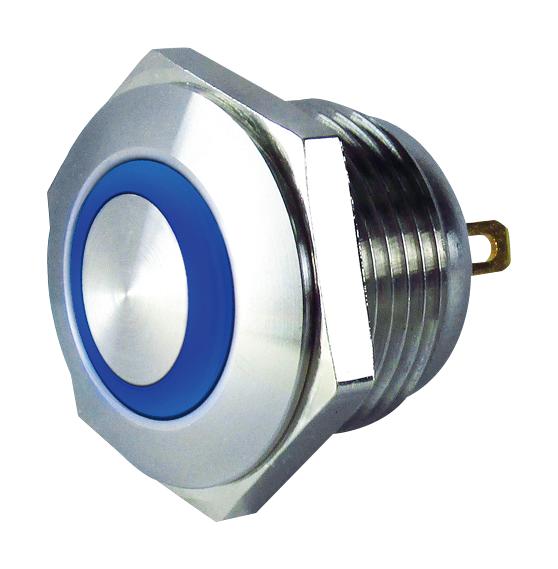

MULTICOMP PRO MC010890 Vandal Resistant Switch
The illuminated vandal resistant switch offers reliable performance with a stainless steel finish and three top types: flush, prominent, and domed. It features a 16mm mounting hole, with contact blocks that have gold-plated contacts, ensuring durability and excellent electrical conductivity. Rated for 48V DC and capable of handling over 100mA current, it includes LED indicators with green, red, and blue options, and operates under various environmental conditions including temperatures from -30°C to +70°C. Its IP67 degree of protection makes it suitable for harsh environments, with high mechanical and electrical life spans for long-term use.
MULTICOMP PRO MC010890 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits: 200 m/sec²; Damage limits: 500 m/sec²
- Mechanical Life: Momentary: 1,000,000; Maintained: 250,000
- Electrical Life: 50,000
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Series Vandal Resistant Switch: MC010890
Discover the durable and reliable vandal resistant illuminated switch designed for harsh environments, featuring stainless steel construction, multiple LED color options, and a rugged IP67 rating. Easily mounted with a 16mm hole, it offers high dielectric strength and long mechanical and electrical lifespan to meet demanding industrial needs. Suitable for outdoor use and critical control applications, this switch provides excellent performance, durability, and clear visual indication with LED illumination, ensuring dependable operation in challenging conditions. Purchase online now for quick, hassle-free delivery.
Buy Multicomp vandal resistant illuminated switch MC010890 now and experience unmatched reliability and performance in harsh environments.
