MULTICOMP PRO MC010917 Vandal Resistant Switch

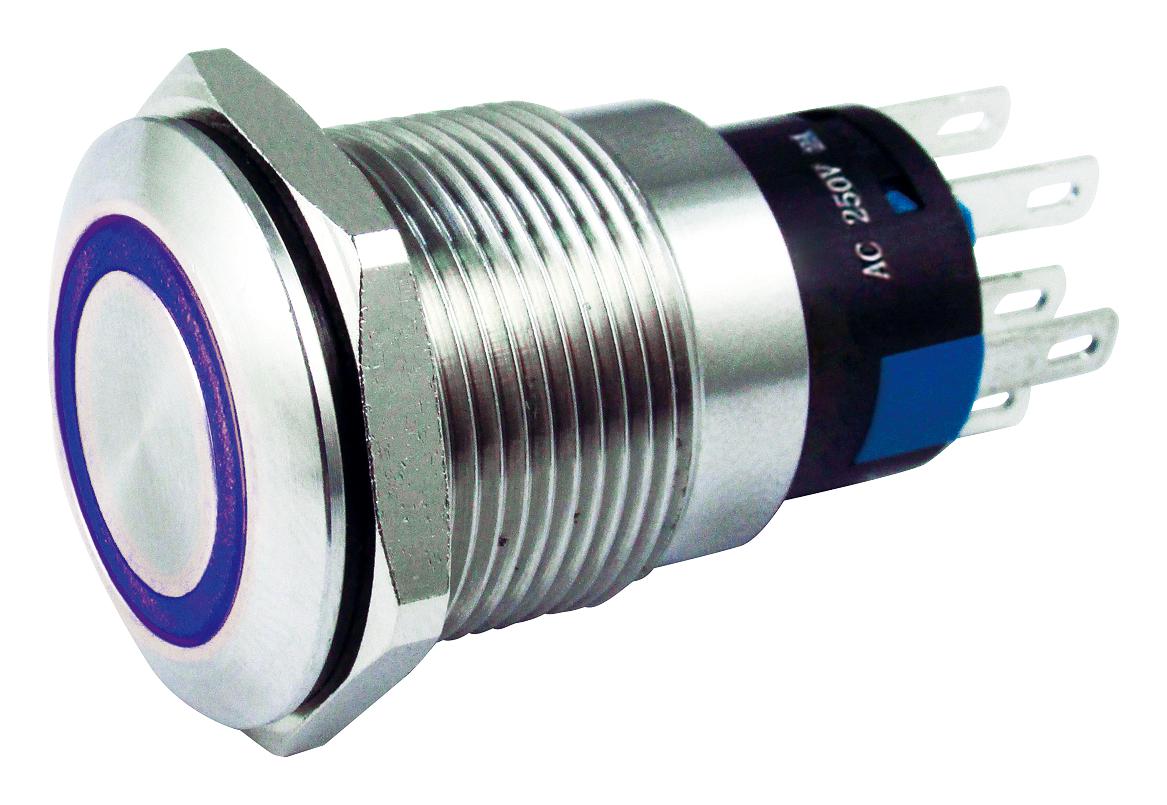

This illuminated vandal-resistant switch features a stainless steel body with a durable design suitable for harsh environments. It offers various contact configurations, including normally open and normally closed contacts, with options for blue, green, and red LED illumination. The switch operates at 250V rated voltage and 5A rated current, with an LED voltage of 12V. It is designed for flush mounting with an IP67 degree of protection, making it ideal for industrial, security, and outdoor applications requiring high durability and illumination.
MULTICOMP PRO MC010917 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Red, Green, Blue
- Switch Operation: Maintained, Momentary
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/S²
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Multicomp Series Vandal Resistant Switch: MC010917
Purchase the Vandal Resistant Switch today online for reliable durability in demanding environments. Featuring stainless steel construction, IP67 protection, and multiple LED color options, this switch is perfect for industrial, security, and outdoor applications. Its high dielectric strength and contact resistance ensure safety and consistent performance. Easy to install with solder terminals, it offers maintained and momentary operation options. Secure your project with a switch that combines strength and illumination, providing long-lasting service and dependable operation in harsh conditions.
Order your Multicomp Series Vandal Resistant Switch MC010917 today and equip your projects with robust, illuminated switches designed for harsh environments.
