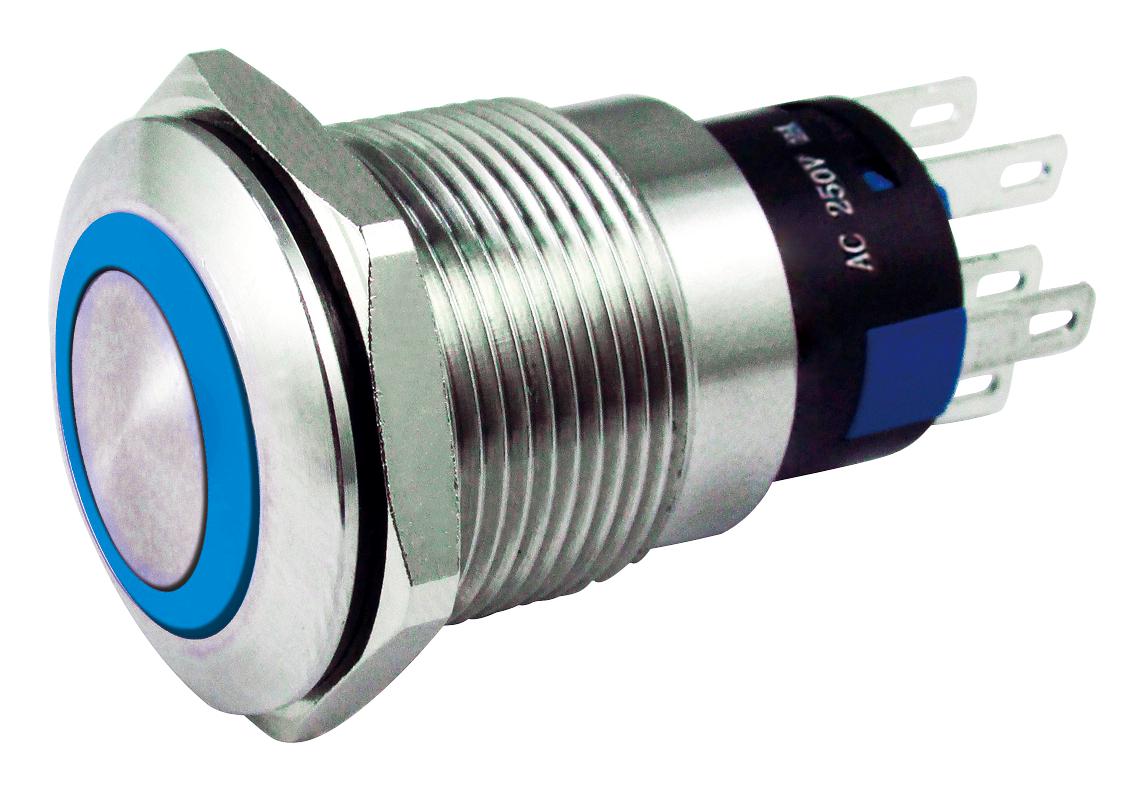

MULTICOMP-PRO MC010929 Vandal Resistant Switch
This illuminated vandal resistant switch is designed for harsh environments, featuring a stainless steel body, LED indicators in red, green, and blue, and contact configurations of 1NO + 1NC or 2NO + 2NC. It supports operate voltages up to 250V and current ratings up to 5A, with a degree of protection IP67, suitable for outdoor or industrial applications. The switch is available in both maintained and momentary operation types, with features like high dielectric strength, insulation resistance, and vibration resistance, ensuring durability and reliable performance in demanding conditions.
MULTICOMP-PRO MC010929 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red, Green, Blue
- Switch Operation: Maintained and Momentary
- Contact Configuration: 1NO + 1NC or 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limits 200 m/S2
- Mechanical Life: 1,000,000 cycles (Momentary), 250,000 cycles (Maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Buy Multicomp Vandal Resistant Switch Part Number MC010929 Online
Order the Multicomp vandal resistant switch MC010929 online now to ensure durable performance in tough environments. Featuring stainless steel construction, multiple contact configurations, and LED indicators, this switch offers excellent durability and reliable operation. Perfect for industrial and outdoor applications, it supports 250V/5A ratings, IP67 protection, and long mechanical and electrical life. Easy to install with solder terminals, it ensures safety with high dielectric strength and insulation resistance. Buy now to enhance your control panels with this rugged, dependable switch designed for demanding conditions.
Get Multicomp vandal resistant switch MC010929 today—built for harsh environments with durable stainless steel construction and reliable LED indicators.
