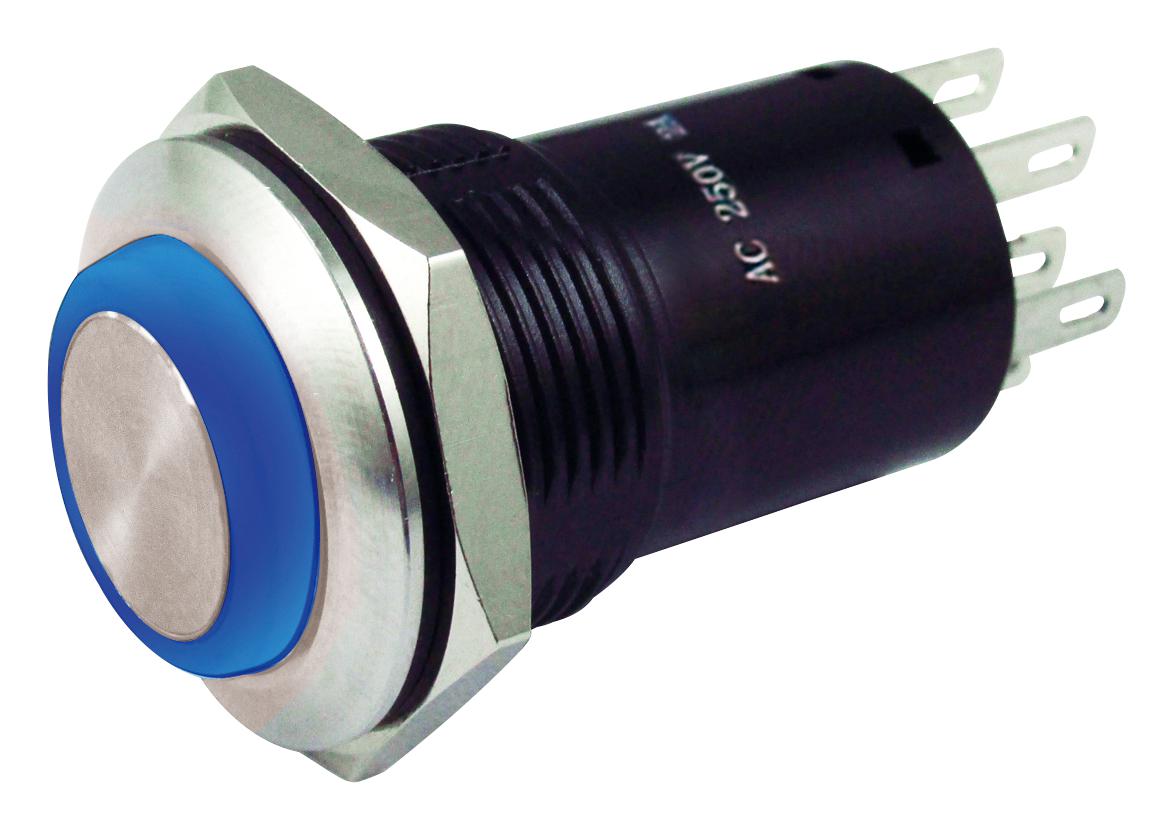

MULTICOMP PRO MC010935 Illuminated Vandal Switch
This prominent illuminated vandal resistant switch features a 19mm mounting hole, silver contact blocks, and a stainless steel body. It offers multiple contact configurations including 1NO + 1NC and 2NO + 2NC with LED indicator colors in blue, green, and red. Rated at 250V and 5A, it is designed for harsh industrial environments with an IP65 degree of protection, withstands vibrations, shocks, and temperature extremes from -30°C to +80°C. The switch's robust construction and LED illumination make it ideal for security, control panels, and outdoor applications. Its switch operation can be maintained or momentary, supporting various industrial controls.
MULTICOMP PRO MC010935 Illuminated Vandal Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Blue / Green / Red
- Switch Operation: 1NO + 1NC / 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 500 m/sec²; Operating limits: 200 m/sec²
- Mechanical Life: Momentary: 1,000,000; Maintained: 100,000
- Electrical Life: 50,000 cycles
- Degree of Protection: IP65
- Terminal Style: Solder terminal
- Weight: 122g
- Panel Thickness: 0.5mm to 6mm
- Terminal Width: 3x0.5mm
- Gasket included
Buy the Multicomp Pro MC010935 – Reliable Illuminated Vandal Resistant Switch for Industrial Applications
Purchase the high-quality illuminated vandal resistant switch online today. Designed for durability in harsh environments, it features multiple contact configurations, LED indicators in blue, green, and red, and an IP65 protection rating. Suitable for security, outdoor, and industrial control applications, it withstands vibrations, shocks, and temperature extremes from -30°C to +80°C. Its stainless steel construction ensures long-lasting performance, making it ideal for demanding industrial environments. Order now for reliable operation and easy installation in your control systems.
Get Multicomp Pro MC010935 today—built for durability with LED illumination and vandal resistant construction for industrial control panels.
