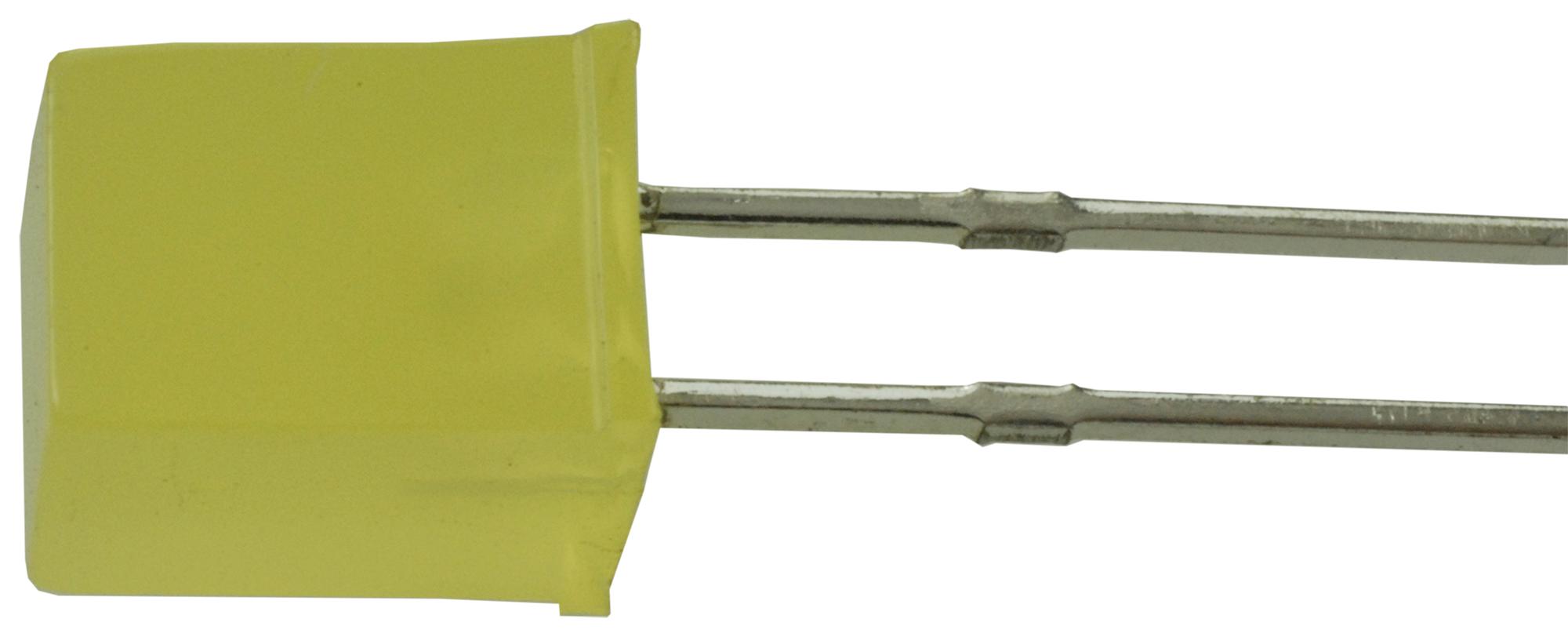

MULTICOMP-PRO MCL293YD Square LED
This yellow 5mm x 5mm square LED from Multicomp Pro offers high luminous intensity and a wide viewing angle of 150°. Designed with GaAsP on GaP dice material, it emits at a peak wavelength of 587nm, ensuring bright and consistent illumination. Suitable for various signaling and indicator applications, this RoHS compliant LED features a forward voltage of 1.7V at 20mA, with a maximum reverse voltage of 5V. Its operating temperature range spans from -40°C to 85°C, making it reliable in diverse environmental conditions. Easy to solder with a lead temperature limit of 260°C for 5 seconds.
MULTICOMP-PRO MCL293YD Square LED Specifications:
- Dice material: GaAsP on GaP
- Emitted colour: Yellow
- Lens colour: Yellow Diffused
- Peak wavelength: 587nm
- Viewing angle: 2 150°
- Luminous intensity: 3.4 millicandela (typical)
- Reverse voltage: 5V
- Reverse current: 10 μA at Ve = 5V
- Forward voltage: 1.7V at 20mA
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds
- Recommended operating current: 20mA
Buy the Multicomp Pro Series Square LED: MCL293YD
Purchase the yellow 5mm x 5mm square LED from Multicomp Pro online today and enjoy fast delivery. This high-brightness LED features a wide 150° viewing angle, low forward voltage of 1.7V at 20mA, and RoHS compliance. Perfect for indicators and signaling in various electronic projects, it functions reliably within a temperature range of -40°C to 85°C. Its durable design and easy soldering process make it an excellent choice for professional and hobbyist use alike. Order now to enhance your devices with vibrant yellow illumination.
Buy Multicomp Pro MCL293YD now and experience unmatched reliability and bright yellow illumination for signaling applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL293YD?
You can click on the BUY or RFQ button to purchase MCL293YD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL293YD?
You can download the MCL293YD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL293YD?
MULTICOMP-PRO
