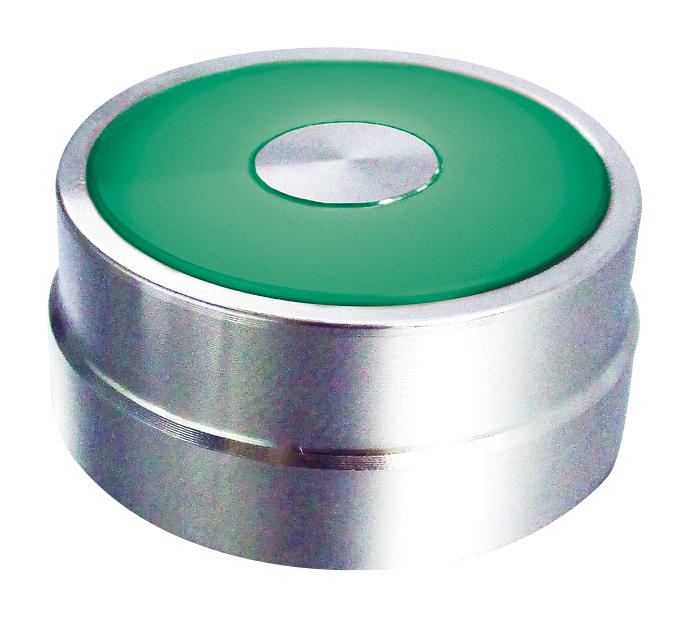

MULTICOMP PRO MC010954 Vandal Resistant Switch
The flush illuminated vandal-resistant switch features a robust metal bezel-ring and silhouette-ring design, suitable for mounting hole diameters of 22mm or 30mm. It boasts a rated voltage of 600V and a rated current of 210A, with LED indicators in green, red, or blue, powered at 12V AC/DC. Made from durable aluminium, it ensures safety with dielectric strength between live parts and ground up to 2,000V AC. The switch offers high resistance to vibration, shocks, and environmental conditions, with an IP65 degree of protection, ideal for harsh industrial environments. Mechanical and electrical life spans reach up to 1 million operations, ensuring long-lasting performance.
MULTICOMP PRO MC010954 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000; Maintained 100,000
- Electrical Life: 100,000
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp Pro Illum illuminated Vandal Resistant Switch Part Number MC010954 Online
Purchase the high-performance vandal resistant switch online today. Designed for demanding industrial settings, it features LED indicators in multiple colors, durable aluminium construction, and a rated voltage of 600V at 210A. Its IP65 sealing protects against dust and water ingress, ensuring longevity. The switch’s high dielectric strength and resistance to vibration and shock make it ideal for controlling equipment in harsh environments. Easy installation and long operational life make it a reliable choice for automation, manufacturing, and safety systems. Order now for fast delivery and guaranteed quality.
Get Multicomp Pro MC010954 today—built for harsh industrial environments with high durability and reliable LED indicators.
