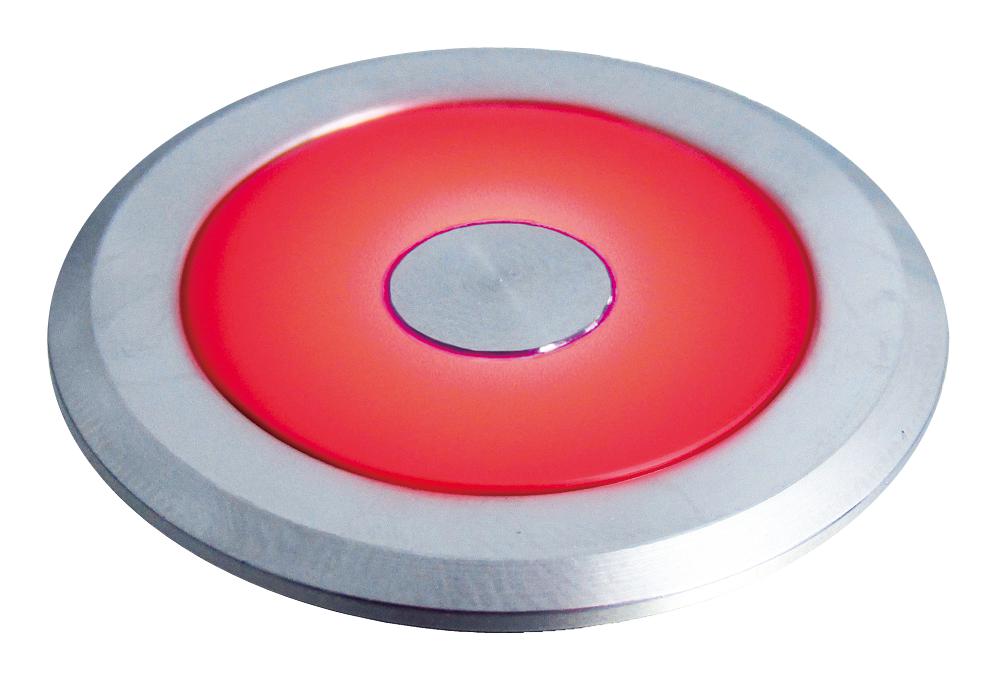

MULTICOMP PRO MC010997 Industrial Vandal Switch
This flush illuminated vandal-resistant switch features a metal bezel-ring design, suitable for industrial settings. It offers various contact configurations including 1NO, 1NC, 2NO, 2NC, combining momentary and maintained types, with LED indicators in green, red, and blue. Rated for 600V and 210A, it has IP65 protection, dielectric strengths of 2000V and 1000V, and operates within -30°C to +80°C storage and 1°C to +55°C operating temperature ranges. The switch withstands vibration and shock, supporting high mechanical and electrical life spans, ideal for rugged industrial applications.
MULTICOMP PRO MC010997 Industrial Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2000V AC / min, Between terminals of same poles: 1000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: 1,000,000 (Momentary), 100,000 (Maintained)
- Electrical Life: 100,000
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Pro MC010997 – Reliable Industrial Vandal Switch for Industrial Applications
Order the industrial vandal-resistant switch by Multicomp Pro MC010997 online today. This heavy-duty switch features an IP65 rating, LED indicators in multiple colors, robust aluminium construction, and multiple contact configurations including momentary and maintained types. It’s designed for demanding environments with a high mechanical and electrical lifespan, ensuring reliable operation. Perfect for industrial automation, control panels, and rugged equipment. Purchase now for fast delivery, secure online checkout, and proven long-lasting performance in challenging applications.
Get Multicomp Pro MC010997 today—built for industrial durability and reliable performance in rugged environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010997?
You can click on the BUY or RFQ button to purchase MC010997 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010997?
You can download the MC010997 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010997?
MULTICOMP PRO
