MULTICOMP PRO MC14669 Wirewound Resistor

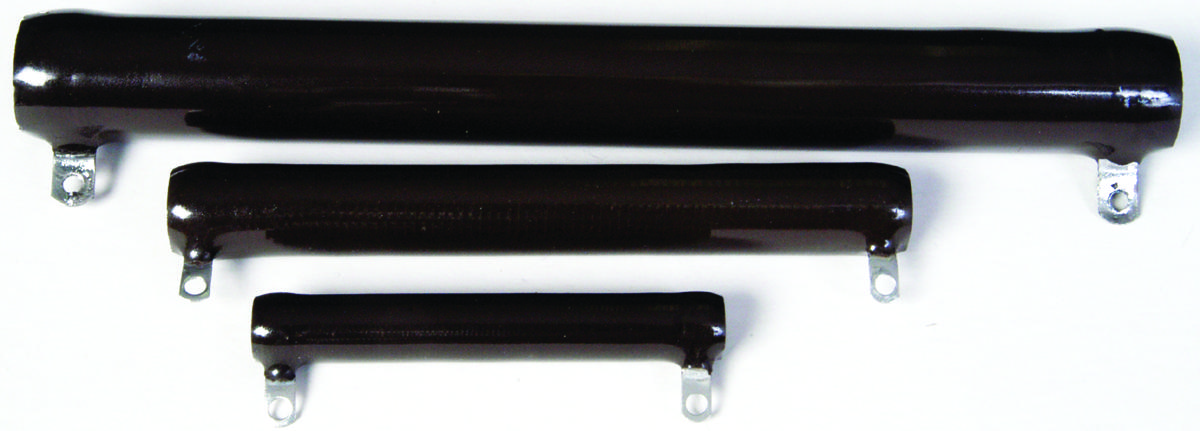

The MC14669 is a 100-ohm adjustable wire-wound resistor featuring a tubular ceramic core and lead-free vitreous enamel coating. It is designed for high power applications, with a power rating based on a 25°C free air condition. The wattage rating applies when the entire resistance element is in the circuit; setting the lug at an intermediate point reduces the effective wattage proportionally. The resistor includes solder-coated radial lug terminals, making it suitable for high power applications. Multicomp Pro products are highly rated by customers and come with a 12-month limited warranty.
MULTICOMP PRO MC14669 Wirewound Resistor Specifications:
- Material: Coating of lead-free vitreous enamel
- Core: Tubular ceramic
- Terminals: Solder-coated radial lug
- Resistance: 100 ohms
- Power Rating: Based on 25°C free air condition
- Overload: 10 times rated wattage for 5 seconds
- Temperature Coefficient: 1Q to 200: +400 ppm/°C, Above 200: +260 ppm/°C
- Dielectric Voltage: 1000V AC for 25W, 50W, 100W; 3000V AC for 225W
- Dimensions: Length 0.563 inches, Diameter 0.313 inches, Typical T2 dimension 0.25 inches
- Suitable for high power applications, with wattage decreasing proportionally when mounted at intermediate points
Buy the Buy Multicomp Wirewound Resistor Part Number MC14669 Online
Order the Multicomp wirewound resistor MC14669 online today. Designed for demanding electrical applications, it offers high power handling, a ceramic core, vitreous enamel coating, and solder-coated terminals. Perfect for high wattage scenarios, with ratings based on 25°C free air conditions. Its rugged construction ensures durability and consistent performance, while the adjustable feature allows for precise resistance settings. Purchase now for reliable, high-quality performance in industrial or electrical projects with fast delivery and excellent support.
Get Multicomp MC14669 today—built for high power, precision, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC14669?
You can click on the BUY or RFQ button to purchase MC14669 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC14669?
You can download the MC14669 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC14669?
MULTICOMP PRO
