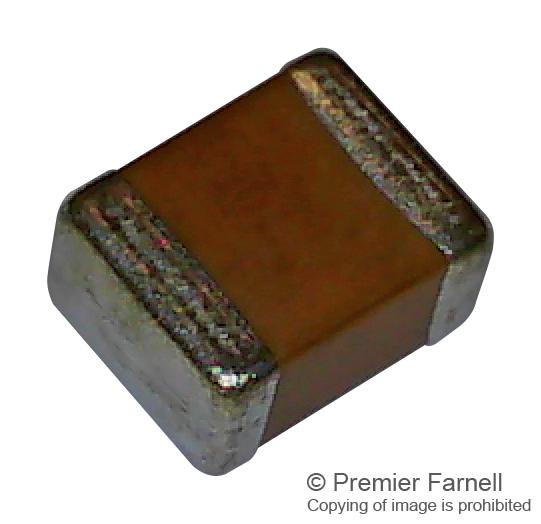

MULTICOMP PRO MC1812N100J302CT High Voltage Ceramic Capacitor
The MC1812N100J302CT is a high-voltage multilayer ceramic capacitor designed for demanding applications requiring stability, reliability, and high capacitance in a compact form. It features a 1808 size with a capacitance of 100pF, rated voltage of 3000V DC, and dielectric material of X7R. Suitable for high-frequency power converters, coupling, DC blocking, and inverter back-lighting, it complies with RoHS standards, offering excellent thermal and electrical stability with robust construction for demanding environments.
MULTICOMP PRO MC1812N100J302CT High Voltage Ceramic Capacitor Specifications:
- Size: 1808 (45mm x 20mm)
- Capacitance: 100pF
- Rated Voltage: 3000V DC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Capacitance Tolerance: +30%/-80%
- Termination: Ni/Sn (lead-free)
- Insulation Resistance: ≥ 10,000 MΩ at rated voltage
- Dielectric Strength: 500V to 999V tested at 1.5x WVDC
- Operating Temperature: -55°C to +125°C
- Reliability: RoHS compliant, high stability, reliable performance in demanding environments
- Application: High voltage filtering, DC coupling, high-frequency power stage, inverter backlighting
- Construction: Ceramic BaTiO3, inner electrodes of Ag/Pd alloy, outer layers of Ni, Sn
- Storage Conditions: Store at 5°C to 40°C, 20-70% humidity, use within one year
Buy the Buy Multicomp High Voltage Ceramic Capacitor Part Number MC1812N100J302CT Online
Secure your Multicomp high voltage ceramic capacitor MC1812N100J302CT online today. With a rating of 3000V DC and 100pF capacitance, this X7R dielectric component offers excellent stability and reliability in high-frequency power conversion, coupling, and inverter applications. Its robust construction, RoHS compliance, and compact size make it ideal for demanding electronic designs. Shop now to enhance your project’s performance with dependable, high-quality ceramic capacitors, delivered quickly and securely from our trusted online store.
Order your Multicomp Series MC1812N100J302CT high voltage ceramic capacitor today and ensure your projects benefit from dependable, high-performance power stability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC1812N100J302CT?
You can click on the BUY or RFQ button to purchase MC1812N100J302CT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC1812N100J302CT?
You can download the MC1812N100J302CT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC1812N100J302CT?
MULTICOMP PRO
