MULTICOMP-PRO MCTC0525B3163T5G High Power Resistor
This high-power chip resistor offers excellent pulse withstanding performance and a high power rating, suitable for demanding electronic applications. It features a resistance tolerance of ±0.1% and a standard temperature coefficient of ±25 ppm/°C. The component operates within a temperature range of -55°C to 155°C and supports a maximum working voltage of 100V. Manufactured under the Multicomp Pro brand, it comes with a 12-month limited warranty and is highly recommended by users, with 96% suggesting it to others. Due to increased market demand, lead times may be extended, and delivery dates can fluctuate. This product is exempt from discounts.
MULTICOMP-PRO MCTC0525B3163T5G High Power Resistor Specifications:
- Case Size: 0805
- Power Rating at 70°C: 0.125W (1/8W)
- Max. Working Voltage: 100V
- Resistance Range: 109 to 1MΩ
- Resistance Tolerance: ±0.1%
- Temperature Range: -55°C to +155°C
- Max. Overload Voltage: 300V
- Dielectric Withstanding Voltage: 500V
- Temperature Coefficient: ±25 ppm/°C
- Operating Temperature: -55°C to +155°C
- Construction: High purity Alumina substrate with Sn, Ni Barrier, Ag resistive element, marking G2 coating, outer termination Sn, inner termination Ag
- Dimensions: Length 1.65mm, width 0.81mm, height 0.55mm
- Marking: Resistance value according to E-24 and E-96 series
- Solderability: 95% coverage min. at 245°C ±5°C dipping for 2-3 sec.
- Soldering Heat Resistance: Resistance change ≤0.2% at 260°C ±5°C for 10 sec.
- Humidity Resistance: Tested at 40°C, 90-95% RH for 1,000 hours with resistance change ≤0.3%
- Load Life: ≤0.5% change after 1,000 hours at 70°C with 0.125W power
- Insulation Resistance: >1000 MΩ at 100V DC

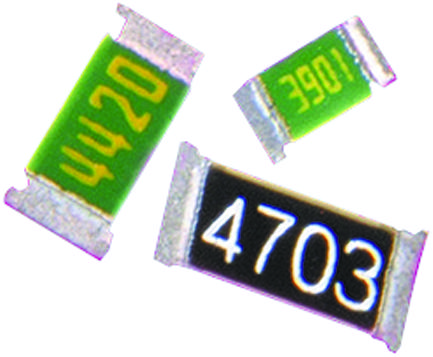

Buy the Buy Multicomp Pro High Power Chip Resistor Part Number MCTC0525B3163T5G Online
Enhance your electronic assembly with this high-power chip resistor. Featuring ±0.1% resistance tolerance, operating from -55°C to 155°C, and supporting a maximum voltage of 100V, it ensures precision and durability in demanding applications. Suitable for high pulse withstand and reliable performance, it is manufactured under strict quality standards by Multicomp Pro. With a 12-month warranty, quick online ordering guarantees prompt delivery, helping you maintain the efficiency of your projects with trusted, high-quality resistors. Ideal for professional and advanced hobbyist use.
Order your Multicomp Pro MCTC0525B3163T5G high power resistor today and ensure your electronic projects are supported by reliable, precision components.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTC0525B3163T5G?
You can click on the BUY or RFQ button to purchase MCTC0525B3163T5G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTC0525B3163T5G?
You can download the MCTC0525B3163T5G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTC0525B3163T5G?
MULTICOMP-PRO
