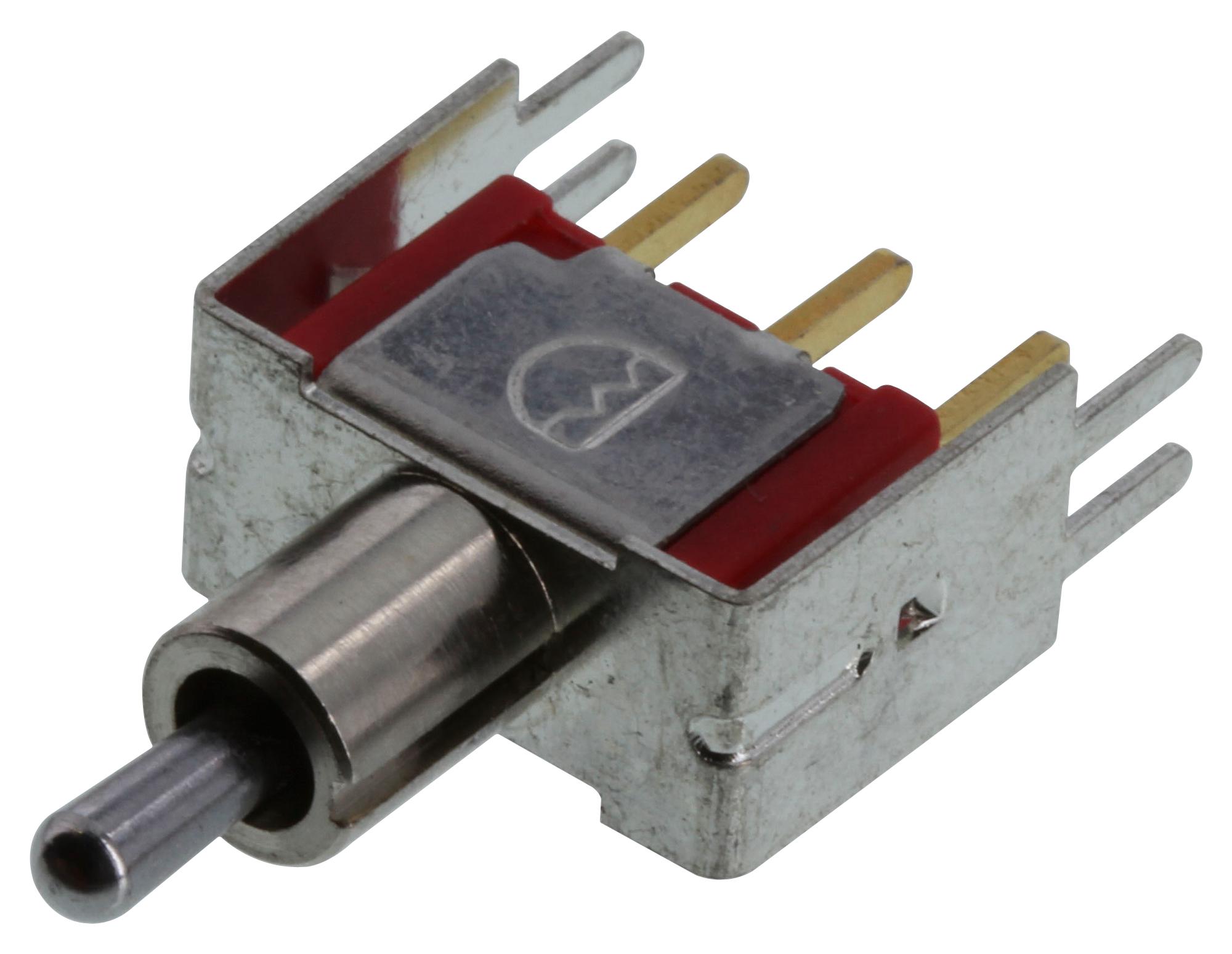

MULTICOMP PRO MC1MS3T2B4V2RE Miniature Toggle Switch
The miniature toggle switch is a non-illuminated SPDT device with On-Off-On configuration, suitable for PCB mounting with a vertical support. It features a brass, chrome-plated actuator, stainless steel housing, and gold-plated copper alloy contacts, offering high durability with 40,000 mechanical cycles. Designed for reliable switching, it withstands operating temperatures from -40°C to 85°C. With a contact rating of 0.4VA and insulative resistance of 1,000MQ, this switch is ideal for compact electronic control panels and industrial applications, ensuring consistent performance in demanding environments.
MULTICOMP PRO MC1MS3T2B4V2RE Miniature Toggle Switch Specifications:
- Contact Configuration: SPDT, On-Off-On
- Actuator Height: 5.08mm
- Bushing Height: 7.10mm, Non-Threaded, Keyway
- Termination Height: 11.68mm, Vertical Bracket, PC Mount
- Contact Rating: 0.4VA Max. @20V Max. (AC/DC)
- Mechanical Life: 40,000 cycles
- Contact Resistance: 10mΩ max. @ 2-4VDC
- Contact Current: 100mA for Gold Plated Contacts
- Insulation Resistance: 1,000MQ min.
- Dielectric Strength: 1,000Vrms min. @ sea level
- Operating Temperature: -40°C to 85°C
- Material: Diallyl phthalate case, Brass actuator (Chrome), Brass Bushing (Nickel), Stainless Steel housing, Copper Alloy contacts (Gold plated)
- Soldering: Manual (350°C, 5 sec), Wave (270±5°C, 5 sec)
Buy the Multicomp Series Miniature Toggle Switch: MC1MS3T2B4V2RE
Discover the reliable and compact miniature toggle switch designed for precise control and durability in electronic and industrial applications. Featuring a non-illuminated SPDT configuration, it supports up to 40,000 cycles and operates in temperatures from -40°C to 85°C. Its robust construction includes a brass actuator, stainless steel housing, and gold-plated contacts, making it ideal for PCB mounting in control panels, automation systems, and demanding environments. Purchase online today for fast delivery and trusted performance.
Order your Multicomp Series miniature toggle switch MC1MS3T2B4V2RE today and ensure reliable switching in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC1MS3T2B4V2RE?
You can click on the BUY or RFQ button to purchase MC1MS3T2B4V2RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC1MS3T2B4V2RE?
You can download the MC1MS3T2B4V2RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC1MS3T2B4V2RE?
MULTICOMP PRO
