A Premier B2B Part Search

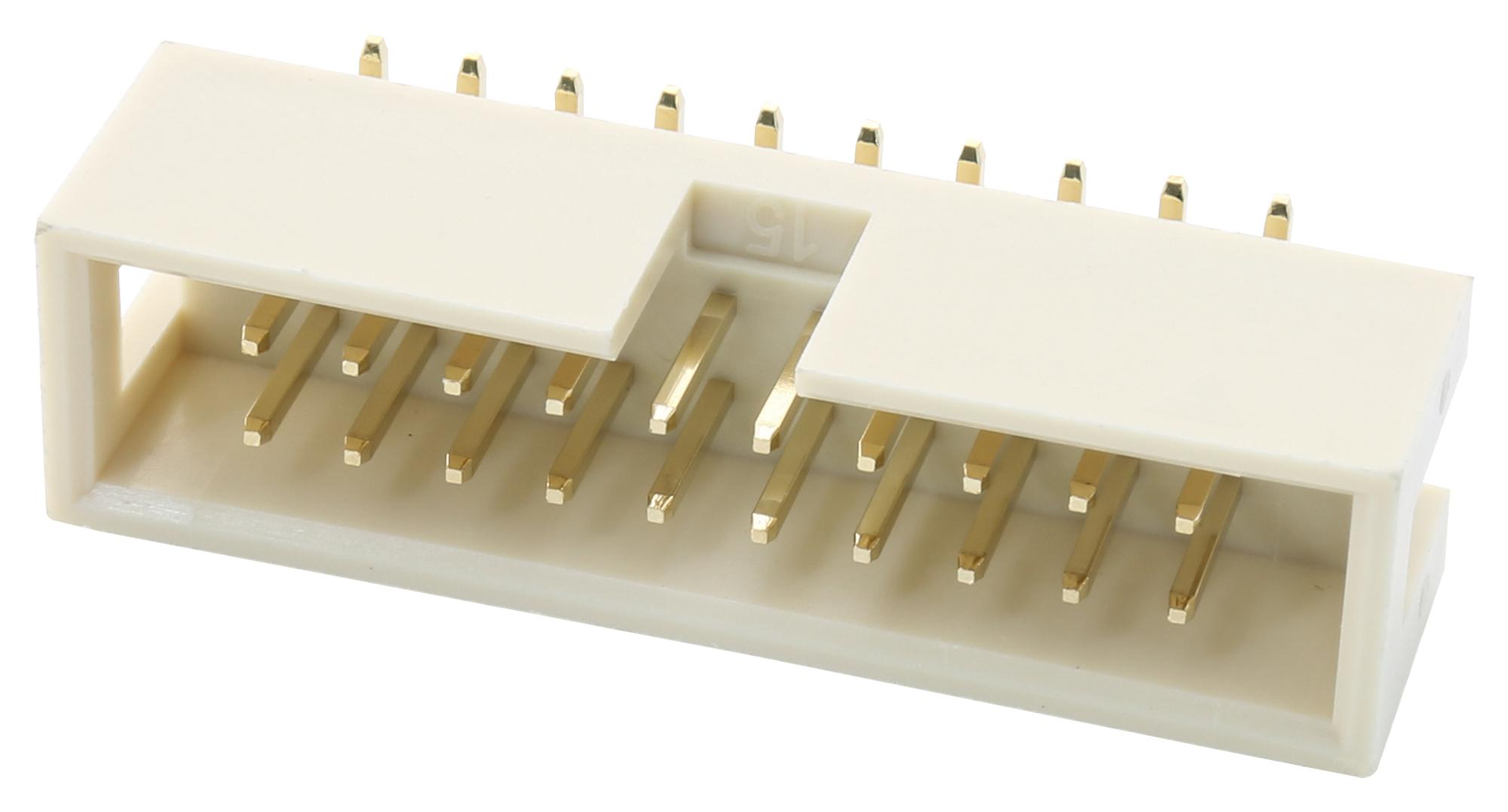

MULTICOMP PRO MC2542400STSMD Vertical Box Header
The vertical 2.54mm box header from Multicomp Pro is designed for reliable pin connections in electronic assemblies. Constructed with high-temp nylon (UL94V-0) insulation and gold-plated copper alloy contacts, it offers excellent conductivity and resistance to high temperatures up to 260°C for up to 5 seconds. Rated at 600V AC and 250V AC/DC, it withstands temperatures from -40°C to +105°C. Suitable for surface-mount technology, these headers are available in various sizes from 6 to 34 positions, ensuring secure and durable connections in industrial and electronic applications.
MULTICOMP PRO MC2542400STSMD Vertical Box Header Specifications:
- Current Rating: 20mA Max.
- Voltage Rating: 250V AC/DC, 600V AC for one minute
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Operating Temperature Range: -40°C to +105°C
- Material: High-temp Nylon (UL94V-0) insulator
- Contact Material: Copper Alloy with Gold Plating
- Wire Range: Compatible with SMT applications
- Dimensions vary depending on number of positions, e.g., 6POS - 15.28mm length, 10POS - 20.36mm length, 34POS - 50.84mm length
- Flammability: UL 94V-0
- Insulation Resistance: 1000MΩ Min.
- Rated Voltage: 600V AC
- Temperature Rating: -40°C to +105°C
- Certifications: RoHS Compliant
- Finish: Gold Plated
- Max Reflow Temperature: 260°C for 5 seconds
Buy the Multicomp Pro 254-+00-ST-SMD – Reliable 2.54mm Vertical Box Headers for Industrial Applications
Enhance your electronic projects with Multicomp Pro vertical box headers featuring a 2.54mm pitch, gold-plated contacts, and robust insulation. Designed for surface-mount technology, these headers support multiple positions for secure connectivity. Rated at 600V AC/DC and operating efficiently between -40°C and +105°C, they are ideal for industrial, automation, and electronic applications. Purchase online today to benefit from high quality, reliable performance, fast delivery, and excellent support, ensuring your assembly's durability and safety.
Get Multicomp Pro 254-00-ST-SMD today—built for precision and long-lasting durability in electronic and industrial connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2542400STSMD?
You can click on the BUY or RFQ button to purchase MC2542400STSMD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2542400STSMD?
You can download the MC2542400STSMD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2542400STSMD?
MULTICOMP PRO
