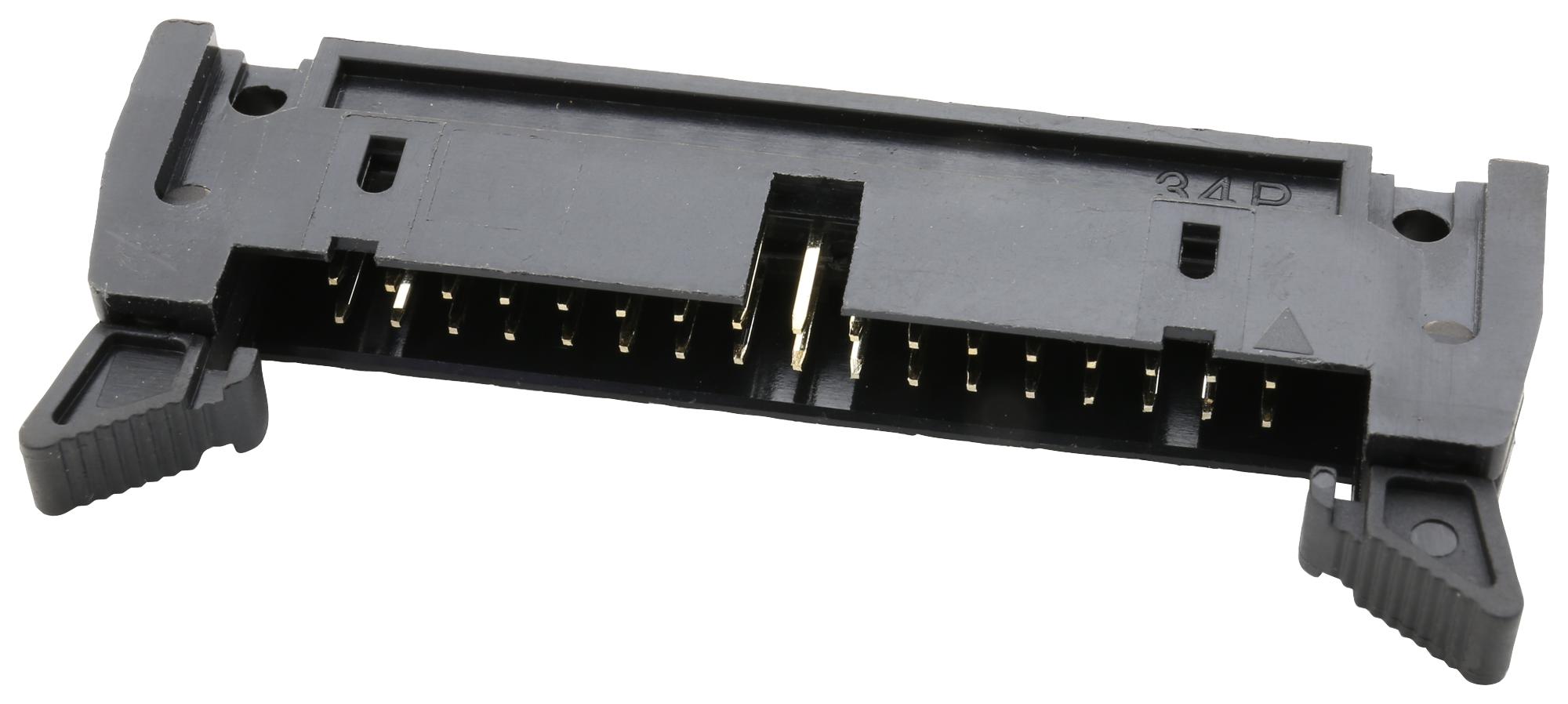

MULTICOMP PRO MC25434LLRADIP 2.54mm Shrouded Header with Ejector
This high-quality 2.54mm shrouded header with ejector features a double row, right-angle through-hole design, suitable for reliable connections in electronic assemblies. Available in short or long ejector variants, it accommodates multiple pin counts up to 64 positions, ensuring versatile integration into circuit boards. Constructed with durable copper alloy contacts, gold-plated for corrosion resistance, and housed in UL94V-0 PBT plastic, it operates over a temperature range of -40°C to +105°C, meeting RoHS standards. It provides stable electrical performance with 8A current rating and 250V voltage rating, ensuring secure and efficient connections.
MULTICOMP PRO MC25434LLRADIP 2.54mm Shrouded Header with Ejector Specifications:
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: PBT (UL94V-0)
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Dimensions: Various (A from 32.2mm to 100.78mm, B from 10.16mm to 78.74mm, C from 10mm to 40.8mm)
- Pin Count: 10, 14, 16, 20, 26, 34, 40, 50, 60, 64 POS
- Configuration: Double row, right angle, through-hole
- Packaging: Suitable for PCB mounting
- RoHS Compliant: Yes
Buy the Multicomp Series 2.54mm Shrouded Header with Ejector: MC25434LLRADIP
Purchase the Multicomp 2.54mm shrouded header with ejector online today and benefit from high-quality construction, gold-plated contacts for corrosion resistance, and robust design suitable for various electronic applications. This double row, right-angle through-hole connector offers excellent electrical performance with an 8A current rating and 250V voltage rating, ensuring reliable connections. Ideal for PCB assemblies, it operates across a wide temperature range from -40°C to +105°C. Secure your electronic projects with this durable, RoHS-compliant connector, available with a 12-month warranty for peace of mind.
Buy Multicomp MC25434LLRADIP now and experience unmatched reliability, easy PCB integration, and secure connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25434LLRADIP?
You can click on the BUY or RFQ button to purchase MC25434LLRADIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25434LLRADIP?
You can download the MC25434LLRADIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25434LLRADIP?
MULTICOMP PRO
