MULTICOMP PRO MC2DLQR Double Action Switch
The M2D Series miniature double action switch offers reliable performance with a compact size of 4.1mm x 4.3mm and a height of 0.6mm, ideal for camera, mobile phone, and peripheral applications. It features a double action mechanism, a contact rating of 50mA at 12V DC, an insulation resistance of 100MQ minimum, and a dielectric strength of 250V AC for 1 minute. Operating force is approximately 90+40gf for the first action and 190+60gf for the second. With an operating temperature range from -40°C to +85°C, it provides durability for 100,000 cycles and ensures long-lasting performance.
MULTICOMP PRO MC2DLQR Double Action Switch Specifications:
- Contact Rating: 50mA, 12V DC
- Contact Resistance: 500mΩ max
- Insulation Resistance: 100MQ min, 100V DC
- Dielectric Strength: 250V AC for 1 minute
- Operating Force: 90+40gf (1st), 190+60gf (2nd)
- Travel: 0.15±0.1mm (1st), 0.3±0.15mm (2nd)
- Operating Life: 100,000 cycles
- Operating Temperature: -40°C to +85°C
- Dimensions: 4.1mm x 4.3mm x 0.6mm
- Suitable for PCB mounting with via pattern 2.7x2.8mm

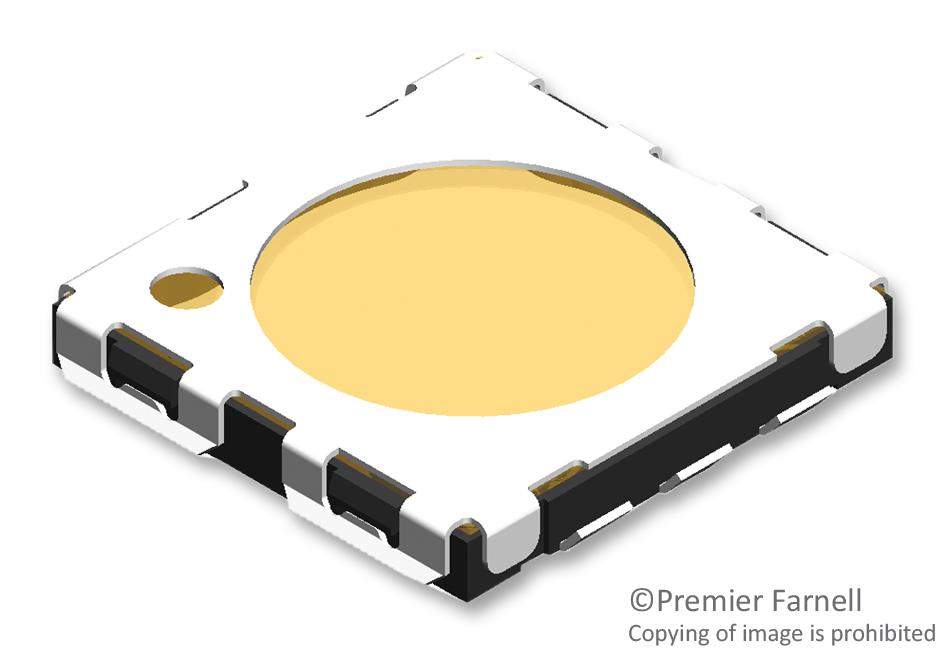

Buy the Buy Multicomp Pro M2D Series Double Action Switch Part Number MC2DLQR Online
Secure your mobile and camera device projects with the reliable double action switch from Multicomp Pro. Featuring a compact 4.1x4.3mm size, it offers durability for 100,000 cycles, suitable for demanding electronic applications. With a contact rating of 50mA at 12V DC, it ensures safe operation in various environments, from -40°C to +85°C. Easy to install on PCB with via pattern 2.7x2.8mm, this switch provides long-lasting and consistent performance for consumer electronics and industrial use.
Buy Multicomp Pro MC2DLQR now and experience unmatched reliability and performance in compact switching solutions.
