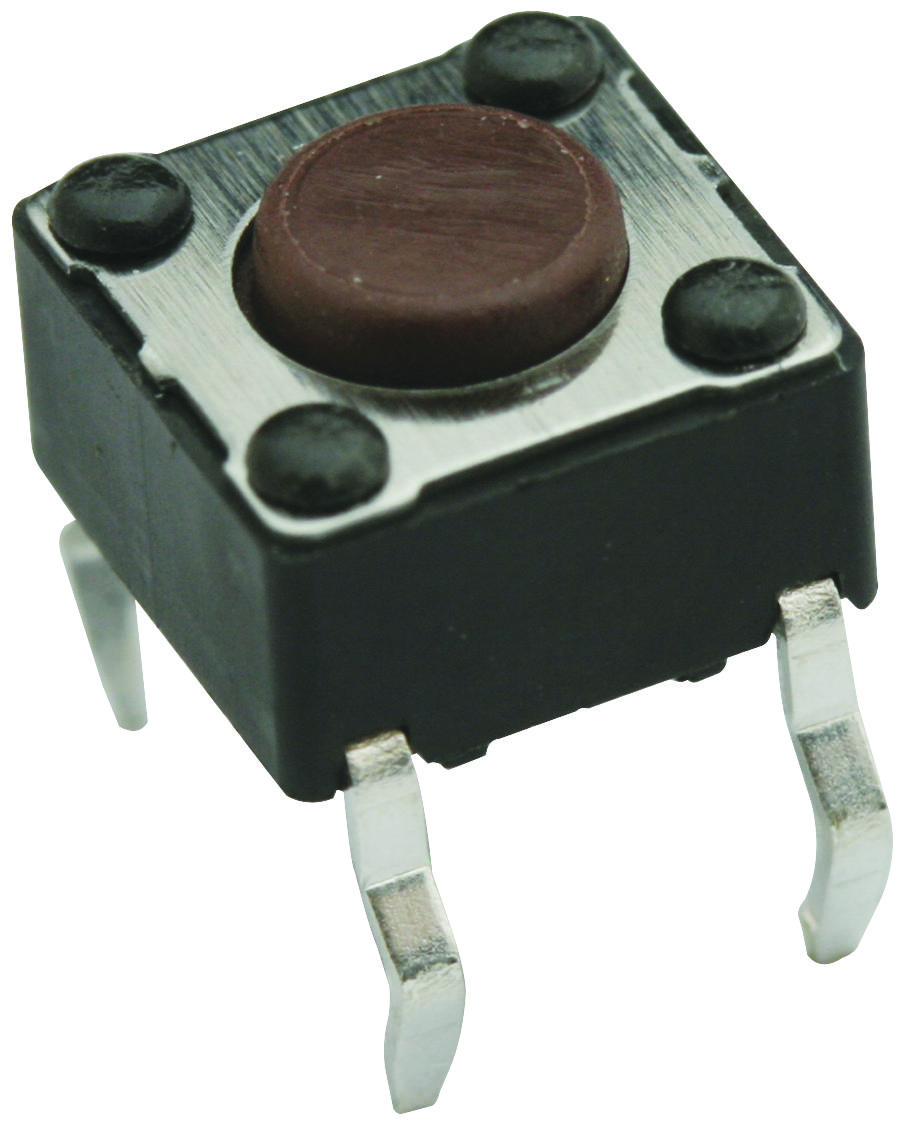

MULTICOMP PRO MC32828 Tactile Switch
The MC32828 is a single-pole, single-throw tactile switch with a stainless steel contact disc and silver cladding, designed for industrial applications. It features a high-temperature UL94V-0 nylon base and stem, with a phosphor bronze dome, supporting up to 200,000 cycles. Rated for 50mA at 12V DC, it offers a contact resistance of 100 milliohms and insulation resistance of 100 megaohms at 500VDC. Its operating temperature range is -25°C to 70°C, making it suitable for diverse industrial environments.
MULTICOMP PRO MC32828 Tactile Switch Specifications:
- Operation Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Electrical Rating: 50mA, 12V DC
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 2500VAC / 1 minute
- Contact Arrangement: 1 pole 1 throw
- Actuator Material: Stainless Steel
- Terminal Material: Brass with silver plating
- Base Material: UL94V-0 Nylon
- Stem Material: UL94V-0 Nylon
- Dome Material: Phosphor Bronze or Stainless Steel
- Operation Force: 100-160g depending on model
- Mechanical Life: 200,000 to 1,000,000 cycles depending on model
- Max Stop Strength: 3kgf vertical static load
- Stroke: 0.354mm
- Dimensions: 23.5mm x 13mm (length x diameter)
- Environmental Resistance: RoHS compliant
Buy the Multicomp MC32828 – Reliable Tactile Switch for Industrial Applications
Discover the durability and high performance of the Tactile Switch, ideal for industrial controls and automation. With a stainless steel contact disc, high-temperature nylon base, and support for up to 200,000 cycles, this switch offers excellent electrical performance, reliability, and resistance to harsh environments. Its compact design and UL94V-0 rated materials ensure safety and longevity. Perfect for applications demanding consistent tactile feedback, it is available for quick online purchase, ensuring seamless integration into your industrial systems and equipment.
Get Multicomp MC32828 today—built for precision, durability, and long-lasting performance in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32828?
You can click on the BUY or RFQ button to purchase MC32828 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32828?
You can download the MC32828 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32828?
MULTICOMP PRO
