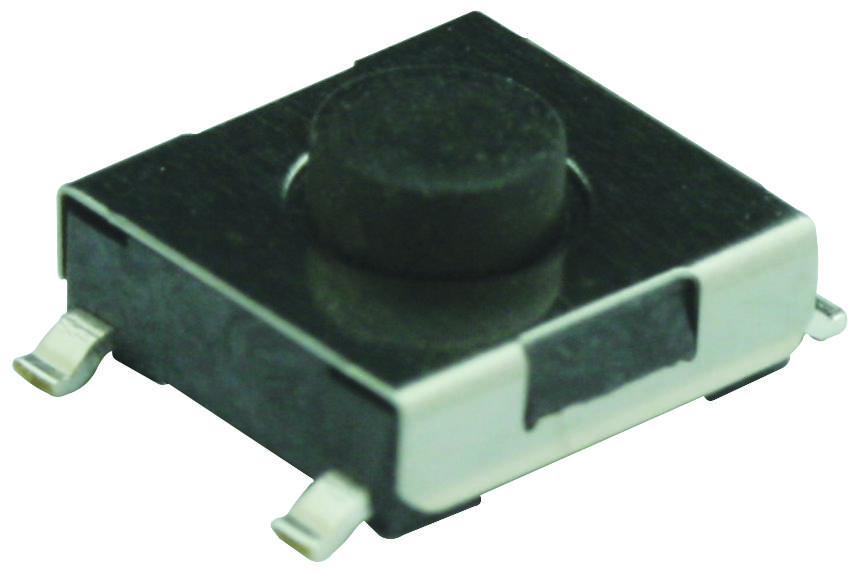

MULTICOMP-PRO MC32884 Tactile Switch
The MC32884 is a durable surface mount tactile switch with a brown actuator, operating force of 160gf, and silver-plated brass terminals. It features a SPST contact configuration and can withstand 200,000 cycles for reliable performance. Operating reliably from -25°C to 70°C, it is ideal for various industrial and electronic applications. This switch is part of the Multicomp Pro series, offering high quality, robustness, and consistent tactile response. Suitable for automation systems, control panels, and electronic devices demanding precise momentary contact operation.
MULTICOMP-PRO MC32884 Tactile Switch Specifications:
- Mechanical Stop Strength: Max 3kgf vertical static load for 15 seconds
- Stroke: 0.2540.2mm/-0.1mm
- Dielectric Strength: 250V AC/1 minute
- Electrical Life: 200000 cycles minimum
- Operation Temperature: -25°C to 70°C
- Contact Resistance: 100mΩ max at 25°C
- Insulation Resistance: 100MQ min. at 500V DC
- Material: Cover steel, base LCP, stem LCP (black 100gf, brown 160gf), contact disc phosphor bronze with silver cladding, terminals brass with silver plating
- Dimensions: Millimeters (Inches) reference for placement and mounting
Buy the multicomp U5032884 – Reliable Tactile Switch for Industrial Applications
Order the multicomp MC32884 tactile switch online today and benefit from high durability, long operational life, and precise tactile response. Perfect for industrial automation, control panels, and electronic devices requiring reliable momentary contact. With a force of 160gf and excellent operating tolerance, this switch ensures consistent performance over 200,000 cycles. Its compact size, robust construction, and high-quality materials make it suitable for demanding environments. Purchase now to enhance your project’s reliability and enjoy fast delivery and excellent customer support.
Buy multicomp MC32884 now and experience unmatched reliability and performance for your industrial control needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC32884?
You can click on the BUY or RFQ button to purchase MC32884 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32884?
You can download the MC32884 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC32884?
MULTICOMP-PRO
