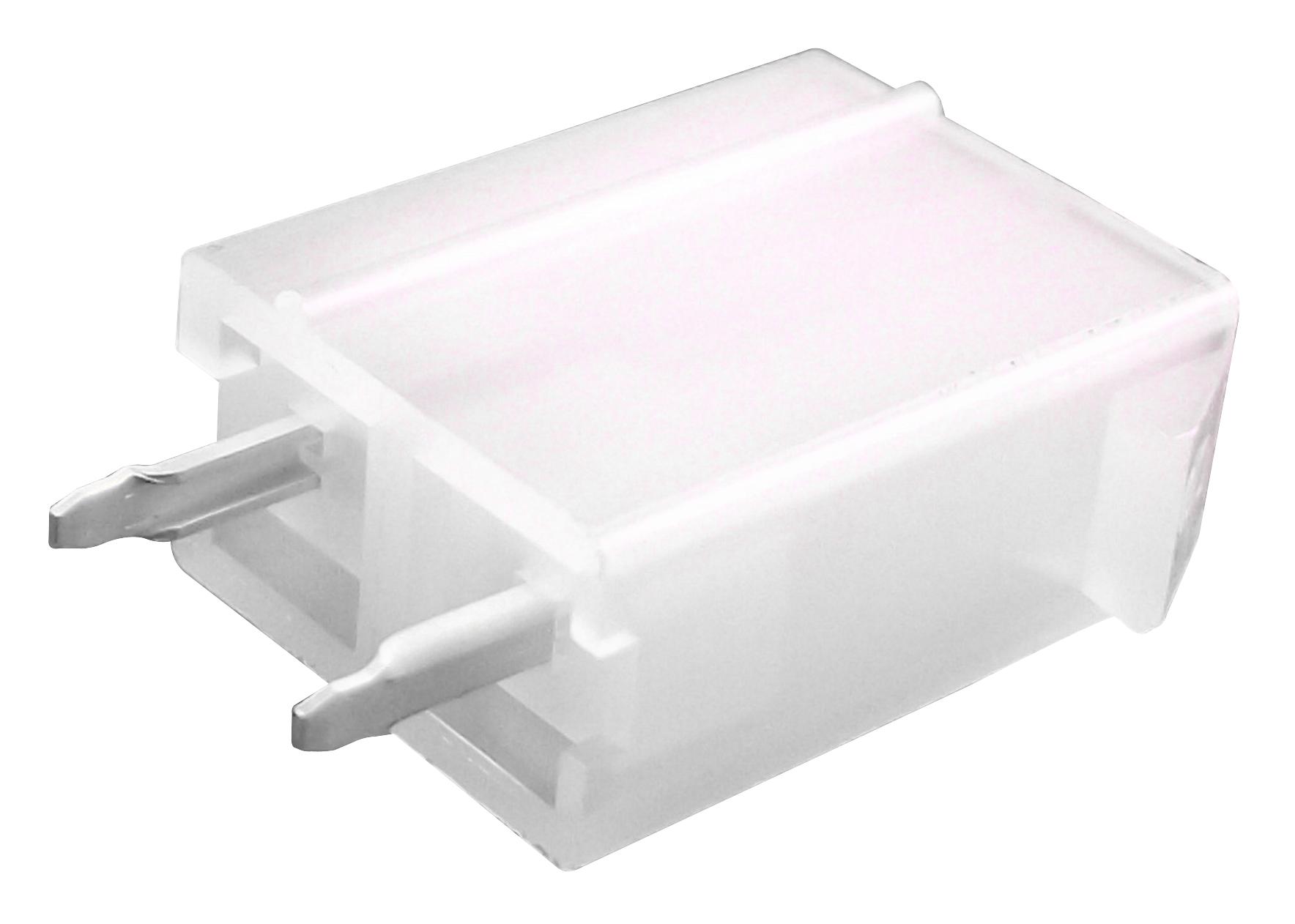

MULTICOMP-PRO MC34657 Vertical Wire Connector
The vertical wire-to-board connectors are designed for reliable electrical connections in industrial and electronic applications. Featuring a 4.2mm header, they are RoHS compliant and rated for 600V AC/DC with a maximum contact resistance of 10mΩ. Made from nylon 66 insulator with a transparent color, the contacts are brass with tin plating. These connectors operate within a temperature range of -40°C to +105°C, ensuring durability in harsh environments. They are ideal for PCB assemblies, providing secure and efficient connectivity for various circuit configurations.
MULTICOMP-PRO MC34657 Vertical Wire Connector Specifications:
- Current Rating: Not specified
- Voltage Rating: 600V AC/DC
- Max. Contact Resistance: 10mΩ
- Min. Insulation Resistance: 1000MΩ
- Withstanding Voltage: 1500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: Nylon 66
- Insulator Colour: Transparent
- Contact: Brass
- Finish: Tin plated
- Number of Ways: 2 to 20
- Connector Type: Vertical Header
- Physical Dimensions: A variable from 5.4 mm to 43.2 mm depending on the part number
- RoHS: Yes
- Certification: RoHS compliant
Buy the Multicomp Pro MC34657 – Reliable Wire-to-Board Connectors for Industrial Applications
Enhance your electronic assembly with the rugged and reliable vertical wire-to-board connectors from Multicomp Pro. Rated at 600V AC/DC, these connectors feature a 4.2mm header, made from durable nylon 66 with brass contacts plated in tin for optimal conductivity. Designed to operate from -40°C to +105°C, they ensure consistent performance even in harsh conditions. Ideal for PCB applications, they provide secure, easy-to-mate connections between wires and circuit boards, streamlining your manufacturing process with quality and durability.
Get Multicomp Pro MC34657 today—built for precise and long-lasting electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC34657?
You can click on the BUY or RFQ button to purchase MC34657 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC34657?
You can download the MC34657 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC34657?
MULTICOMP-PRO
