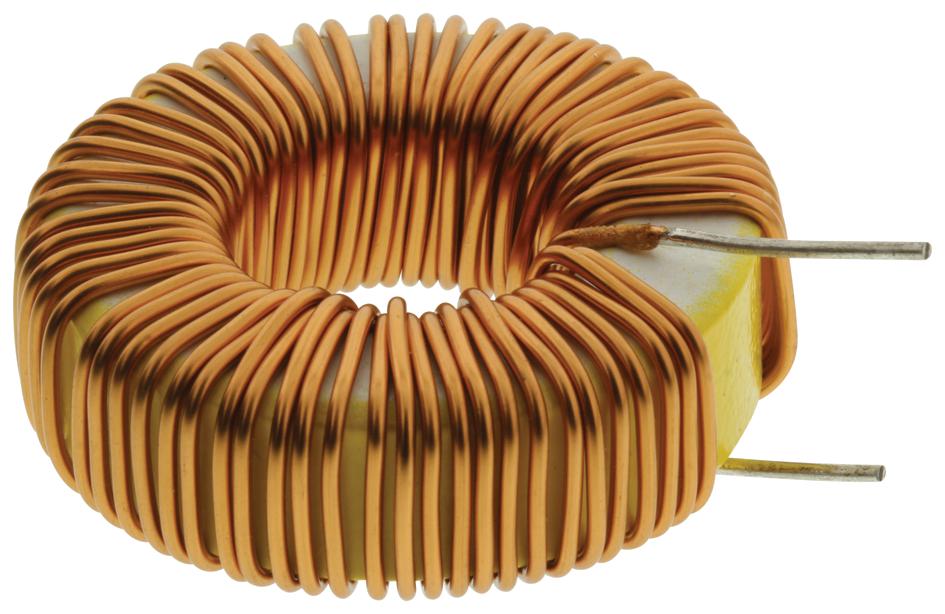

MULTICOMP PRO MCAP115018062A381MU Power Inductor
This product is a high-quality 380 microhenry inductor with 20% tolerance, designed for efficient power management and filtering in electronic circuits. It includes a 2-pin configuration, utilizing a T150-75-TAF200 core and UEFN/U 1mm wire rated for 155°C. The inductor operates within a temperature range of -55°C to +130°C, ensuring reliable performance under harsh conditions. It exhibits a maximum DCR of 70mΩ, with inductance stability, making it suitable for various industrial and electronic applications requiring high current handling and compact form factors.
MULTICOMP PRO MCAP115018062A381MU Power Inductor Specifications:
- Inductance: 380μH with 20% tolerance
- Max DCR: 70mΩ
- Operating temperature: -55°C to +130°C
- Core Material: T150-75-TAF200 (Red / White)
- Wire Type: UEFN/U 1mm (155°C)
- Solder: Lead-free, Sn99.3% / Cu0.7%
- Dimensions and maximum measurements: Length varies, typical 44mm, width 15.5mm, minimum D 1mm, E 13.5+1.5mm
- Frequency Range: Up to 1kHz for specified inductance
- Maximum Continuous Current: 10.5A RMS
- Solderability: 95% surface coverage, temperature 260°C for 15s
- Reliability Testing: Meets J-STD-020B Level 3 and J-STD-002B standards
- Humidity and Moisture Resistance: 70% humidity, 8-hour steam aging, no solder defects
- Electrical characteristics tested at 10kHz/5mA, temperature rise max 40°C, inductance within ±5%
Buy the Farnell MCAP115018062A-381MU – Reliable 380uH Inductor for Industrial Applications
Purchase the Farnell MCAP115018062A-381MU inductor online today—engineered for high performance and reliability in industrial electronics. This 380μH inductor with 20% tolerance offers excellent current handling capabilities, low DCR, and stable inductance across a wide temperature range. Its compact size and durable construction make it perfect for power filtering, energy storage, and circuit stability tasks. Easy to install with lead-free solder, it complies with industry standards for moisture resistance and solderability, ensuring optimal performance in demanding environments. Buy now to enhance your electronic design.
Get Farnell MCAP115018062A-381MU today—built for precision and long-lasting durability, ideal for power supplies and filtering needs.
