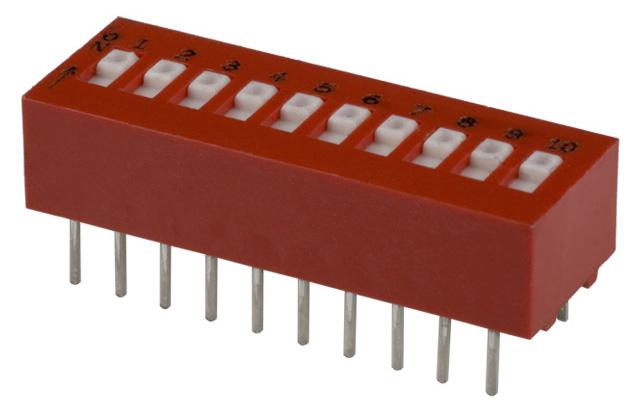

MULTICOMP PRO MCTIIR10T DIP SIP Switch
The DIP / SIP switches offer reliable performance with durable mechanical and electrical features, suitable for various electronic applications. Constructed with UL 94V-0 nylon and high-temperature thermoplastics, they feature gold-plated copper contacts and brass actuators, ensuring longevity and stable operation within operational temperatures from -20°C to +85°C. Designed with multiple circuit options—4, 8, or 10—these slide switches support 24V DC, 25mA current ratings, with maximum contact resistance of 100mΩ and dielectric strength of 500V AC for one minute. Perfect for PCB and panel installations, they conform to safety standards and are easy to solder and assemble.
MULTICOMP PRO MCTIIR10T DIP SIP Switch Specifications:
- Mechanical Life: 2,000 operations
- Max. Operating Force: 1,000gf
- Stroke: 0.8mm
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Electrical Life: 2,000 cycles
- Rating: 24V DC, 25mA
- Max. Contact Resistance: 100mΩ
- Dielectric Strength: 500V AC/1 minute
- Circuit: 3 positions
- Material: UL 94V-0 Nylon (body), UL 94V-0 LCP (cover), Alloy copper contacts with gold plating, Brass actuators with gold plating, Kapton tape
- Dimensions: Part-specific, e.g., MCTIIR-10-T: 26.56mm length, 22.86mm width
- Soldering Process: Wave, hand, reflow soldering methods suitable within specified temperature profiles
- Mounting Type: Through-hole and SMT options
- Compliance: Conforms to safety standards, UL listed
Buy the Multicomp Series DIP SIP Switch: MCTIIR10T
Order the reliable DIP SIP Switch online today and enhance your electronic assemblies with durable, high-quality switching solutions. Designed for easy soldering and installation, these switches support multiple circuit configurations and operate within a wide temperature range. Whether for PCB or panel integration, this product guarantees stable operation and long-lasting performance. Discover competitive prices and quick delivery when you purchase online, ensuring your project stays on schedule. Experience the convenience and confidence of buying the trusted DIP SIP Switch for your professional or hobbyist needs.
Buy Multicomp Series DIP SIP Switch MCTIIR10T now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTIIR10T?
You can click on the BUY or RFQ button to purchase MCTIIR10T from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTIIR10T?
You can download the MCTIIR10T datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTIIR10T?
MULTICOMP PRO
