MULTICOMP-PRO MCL514GD Green LED
This green 3mm round LED emits at a wavelength of 568nm with a diffused lens, offering a viewing angle of 176°. It features a luminous intensity of 10 med at 20mA, with a forward voltage of 1.7V. Designed for reliable performance, it has a maximum reverse voltage of 5V and a reverse current of 10µA. Suitable for various electronic applications, the LED operates within -40°C to +85°C and can be soldered at 260°C for 5 seconds from a 4.6mm distance. Its RoHS compliance ensures environmentally safe manufacturing.
MULTICOMP-PRO MCL514GD Green LED Specifications:
- Emitter Material: GaP
- Emitted Colour: Green
- Lens Colour: Green Diffused
- Peak Wavelength: 568nm
- Viewing Angle: 176°
- Luminous Intensity (IV): 10 med at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10µA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds, 4.6mm from body
- Forward Voltage: 1.7V at 20mA
- Peak Forward Current (Duty 1/10 at 1kHz): 100mA
- Maximum Power Dissipation: 85mW

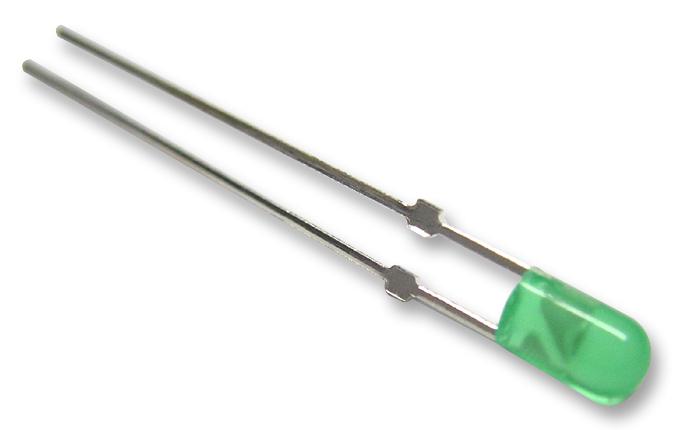

Buy the Buy Multicomp Green Round LED Part Number MCL514GD Online
Enhance your electronic devices with the high-quality green round LED, measuring 3mm and emitting at 568nm. Its diffused lens provides a wide 176° viewing angle, making it ideal for indicators and displays. Capable of operating from -40°C to +85°C, it features a luminous intensity of 10 med at 20mA, with a forward voltage of 1.7V. RoHS compliant, it’s suitable for diverse applications. Order this reliable LED online today to add brightness and clarity to your assemblies efficiently.
Order your Multicomp SeriesMCL514GD Green LED today and ensure reliable indicator performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL514GD?
You can click on the BUY or RFQ button to purchase MCL514GD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL514GD?
You can download the MCL514GD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL514GD?
MULTICOMP-PRO
