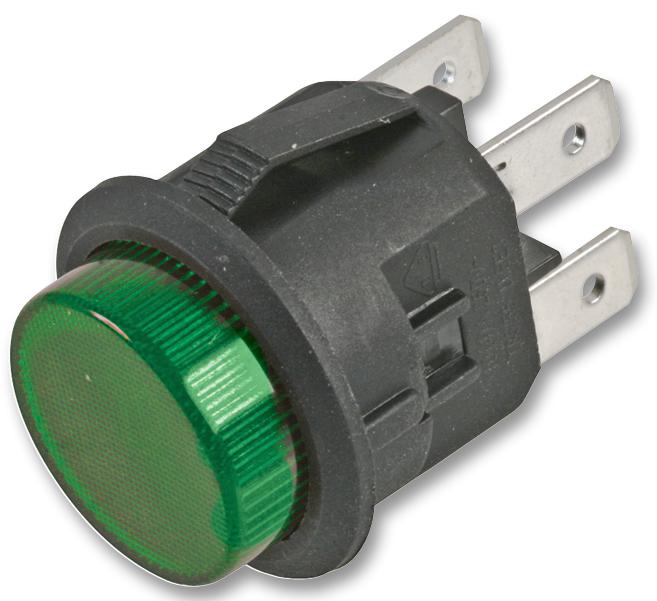

MULTICOMP-PRO MCLC2107KMET2B Illuminated Pushbutton Switch
This illuminated round pushbutton switch features a DPST contact configuration, quick connect terminals, and a neon lamp voltage of 250VAC. Constructed with a durable polyamide housing and silver alloy contacts, it is rated for up to 10A at 250V AC, with an electrical life of 26,000 cycles. Suitable for control panels, the switch endures temperatures from -20°C to +85°C on the terminal side and operates under humidity up to 85%. Its compact design includes a momentary rocker with various color options, and adheres to UL and VDE safety standards. The switch can handle up to 210kg pull force and 26kg push force for TABS, making it suitable for industrial applications requiring reliable operation and long service life.
MULTICOMP-PRO MCLC2107KMET2B Illuminated Pushbutton Switch Specifications:
- Contact Configuration: DPST
- Actuator: Illuminated, Round
- Terminal: Quick Connect Tab
- Lamp Voltage: 250VAC
- Ambient Temperature: Terminal Side -20°C to +85°C, Actuating Side 20°C to +55°C
- Storage Temperature: -30°C to +85°C
- Atmospheric Humidity: 85% Max.
- Actuating Force: 3~8N
- Temperature Rise: 30°C Max. @ Terminal
- Safety Approval: UL, VDE
- Solder Ability: 350°C Max., 3s
- Electrical Rating: 10A (4A), 250V AC (VDE), 16A, 125V/250V AC (UL)
- Electrical Life Endurance: 26,000 cycles (VDE), 10,000 cycles (UL)
- Contact Resistance: <20mΩ
- Insulation Resistance: >1000MΩ
- Dielectric Strength: >1500V/min (VDE), >1250V/min (UL)
- Temperature Rise: 55°C (VDE), 30°C (UL)
- Push Force for TABS: 26kg
- Pull Force for TABS: 210kg
- Horizontal Direction Force for TABS: 22kg
- Operating Force: 1200g +300g
- Housing Material: Polyamide 6.6, Black
- Contacts Material: Silver Alloy
- Terminal Material: Brass, Silver Plated
- Spring Material: Chromated Steel Wire
- Movable Arm Material: Brass (C2680)
- Bracket Material: Polyamide 6.6
Buy the Buy Premier Farell Illuminated Round DPST Part Number MCLC2107KMET2B Online
Order the Premier Farell illuminated round DPST pushbutton switch online now to ensure reliable control in industrial and automation applications. Designed with a sturdy polyamide housing, silver alloy contacts, and quick connect terminals, it offers durability, safety compliance, and excellent electrical ratings up to 10A at 250VAC. Its compact, momentary rocker design with versatile color options makes it ideal for control panels, machinery, and equipment. With UL and VDE approvals, this switch ensures safety, long service life, and easy installation for professional use.
Get Premier Farell MCLC2107KMET2B today—built for precision and long-lasting durability with reliable illumination and industrial-grade construction.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCLC2107KMET2B?
You can click on the BUY or RFQ button to purchase MCLC2107KMET2B from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCLC2107KMET2B?
You can download the MCLC2107KMET2B datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCLC2107KMET2B?
MULTICOMP-PRO
