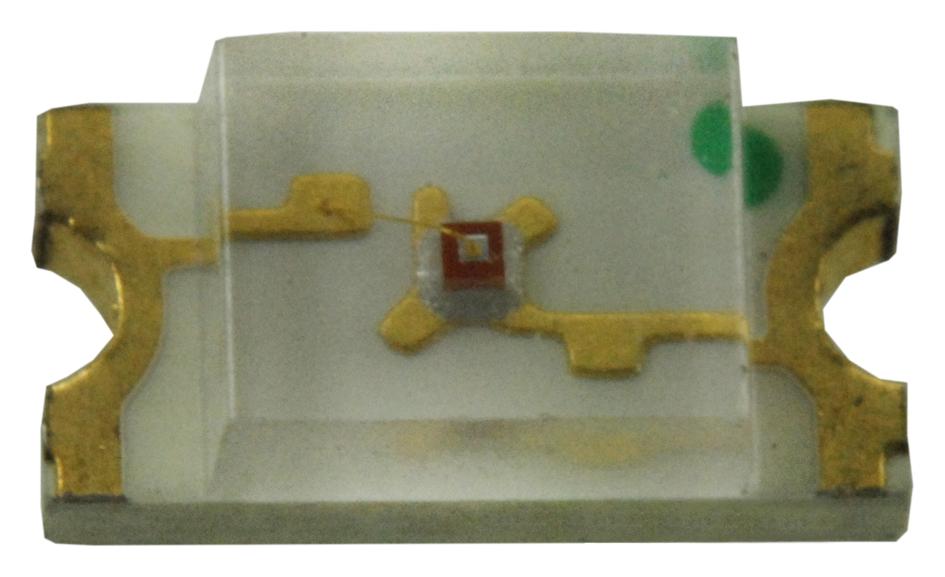

MULTICOMP PRO MCLS250GC Green Surface-Mount LED
The MCL-S250GC is a high-quality green surface-mount LED designed for industrial and medical applications. Featuring water-clear epoxy encapsulation and GaP dice, it offers excellent luminous intensity, a 40° viewing angle, and operates within -40°C to 85°C. With a peak wavelength of 568nm, forward voltage around 2.1V at 20mA, and a maximum reverse voltage of 5V, this 1206 package component ensures reliable performance for various electronic projects and indicator applications. Suitable for reflow soldering and RoHS compliant, it guarantees durability and efficiency in demanding environments.
MULTICOMP PRO MCLS250GC Green Surface-Mount LED Specifications:
- Package Size: 1206
- Dice Material: GaP (Gallium Phosphide)
- Emitted Colour: Green
- Peak Wavelength: 568nm
- Viewing Angle: 40°
- Luminous Intensity: 10mcd
- Reverse Voltage: 5V
- Reverse Current at 5V: 10µA
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature: 260°C for 5 seconds at 2.4mm from body
- Forward Voltage: 2.1V typical at 20mA
- Maximum Power Dissipation: 85mW
- Peak Forward Current (Duty 1/10 at 1kHz): 100mA
- RoHS Compliant
Buy the Buy Multicomp Green SMD LED Part Number MCLS250GC Online
Purchase the Multicomp SeriesMCLS250GC green SMD LED today for your industrial and medical electronics. This compact 1206 package offers excellent brightness with 10mcd luminous intensity, a 568nm peak wavelength, and a 40° viewing angle. Built with GaP dice and water-clear epoxy, it ensures durability and consistent performance over its operating temperature range of -40°C to 85°C. Perfect for indicator lights, status displays, and lighting applications, it is RoHS compliant and suitable for reflow soldering for quick assembly and dependable operation.
Order your Multicomp SeriesMCLS250GC green SMD LED today and enhance your electronic projects with reliable, high-performance illumination.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCLS250GC?
You can click on the BUY or RFQ button to purchase MCLS250GC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCLS250GC?
You can download the MCLS250GC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCLS250GC?
MULTICOMP PRO
