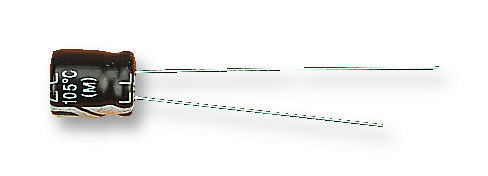

MULTICOMP PRO MCMHR6V3107M63X7 Electrolytic Capacitor
The electrolytic capacitor from the MCMHR Series offers a compact design with a short body length of just 7mm, ideal for high-density, miniaturized electronic devices such as office machines, cameras, and audio systems. It features a temperature range from -40°C to +105°C, with voltage ratings up to 683V DC and capacitance values spanning 0.1pF to 470uF. Designed for reliable performance, it withstands high-temperature loading, shelf life, and circuit board cleaning, making it perfect for demanding applications in modern electronics.
MULTICOMP PRO MCMHR6V3107M63X7 Electrolytic Capacitor Specifications:
- RoHS compliant
- Operating Temperature Range: -40°C to +105°C
- Rated Working Voltage Range: 6.3V DC to 683V DC
- Capacitance Range: 0.1pF to 470uF
- Capacitance Tolerance: +20% (at+20°C, 120 Hz)
- Leakage Current: | = 0.01CV or 3 (uA) after two minutes
- Dissipation Factor (Tan 8) at 120Hz, +20°C: Max. 0.24 at 63V, decreasing with voltage
- High Temperature Loading Test: After 1000 hours at +105°C, leakage current remains as initial, capacitance change within 420%, and Tan 8 within 200%
- Shelf Life: 500 hours at +105°C without voltage, with same post-test limits at +20°C
- Solvent Proof: Can withstand circuit-board cleaning with Freon TE, TES at 40°C, or steam within 5 minutes, including ultrasonic cleaning
Buy the multicomp Series MCMHR 6.3V 10uF: MCMHR6V3107M63X7
Enhance your electronic projects with the reliable and compact electrolytic capacitor from the multicomp Series. Designed for high-density and miniaturized devices, it operates efficiently from -40°C to +105°C and handles voltages up to 683V DC. Its RoHS compliance ensures environmental safety. Suitable for automatic office machines, cameras, audio equipment, and VCRs, this capacitor withstands high temperatures, high-temperature loading, and circuit board cleaning, making it an essential component for durability and performance in modern electronic manufacturing.
Get multicomp Series MCMHR 6.3V 10uF today—built for precision and long-lasting durability in compact electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMHR6V3107M63X7?
You can click on the BUY or RFQ button to purchase MCMHR6V3107M63X7 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMHR6V3107M63X7?
You can download the MCMHR6V3107M63X7 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMHR6V3107M63X7?
MULTICOMP PRO
