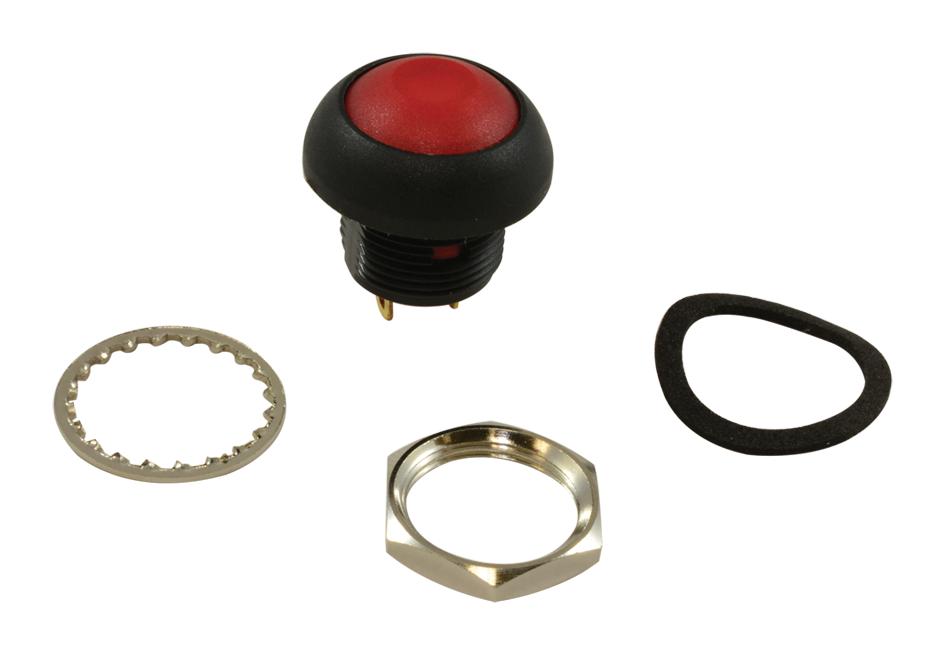

MULTICOMP-PRO MCPAS6B2M1CE3 pushbutton switch
The MCPAS6B2M1CE3 is a red SPST pushbutton switch with solder lug terminations, featuring a flat plunger top suitable for marking and a threaded bushing for secure mounting. It offers a contact bounce time of 10 milliseconds, with a maximum torque of 1.5 Nm applied to the nut, and requires an operating force between 2 to 5 Newtons. Designed for industrial and automation applications, this switch supports a panel thickness of 1.5mm to 4mm, and is rated for resistive loads up to 400mA at 32V AC and 100mA at 50V DC. Its rugged construction ensures reliable operation in harsh environments.
MULTICOMP-PRO MCPAS6B2M1CE3 pushbutton switch Specifications:
- Switch Function: SPST, Normally open
- Contact Resistance: Max. 50mΩ
- Insulation Resistance: 1GΩ at 500V DC
- Dielectric Strength: 1,000V AC rms
- Electrical Life: 500,000 cycles
- Panel Thickness: 1.5mm to 4mm
- Total Travel: 0.8mm to 1.8mm
- Operating Force: 2N to 5N
- Max Torque: 1.5 Nm
- Max Soldering Temperature: 300°C for 3 seconds
- Contact Bounce: 10 ms
- Body Material: Epoxy
- Mounting: Threaded bushing, snap-in mounting option
- Dimensions: Flat plunger diameter 5mm (0.472 inch), mounting diameter 12mm (0.472 inch), panel cut-out 17.6mm (0.688 inch)
Buy the Multicomp Reliable Push Button Switch for Industrial Applications
Order the Multicomp push button switch now—engineered for robust performance and easy installation in industrial environments. This SPST switch features solder lug terminals, a flat plunger top with marking capabilities, and a threaded bushing for secure mounting. Its high contact resistance, dielectric strength, and long electrical life ensure dependable operation over countless cycles. Perfect for automation, machinery, and control panels, this switch supports panel thicknesses from 1.5mm to 4mm and is rated for resistive loads up to 400mA at 32V AC. Buy online today for fast delivery and reliable quality.
Get Multicomp push button switch today—built for precision, durability, and reliable performance in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCPAS6B2M1CE3?
You can click on the BUY or RFQ button to purchase MCPAS6B2M1CE3 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPAS6B2M1CE3?
You can download the MCPAS6B2M1CE3 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCPAS6B2M1CE3?
MULTICOMP-PRO
