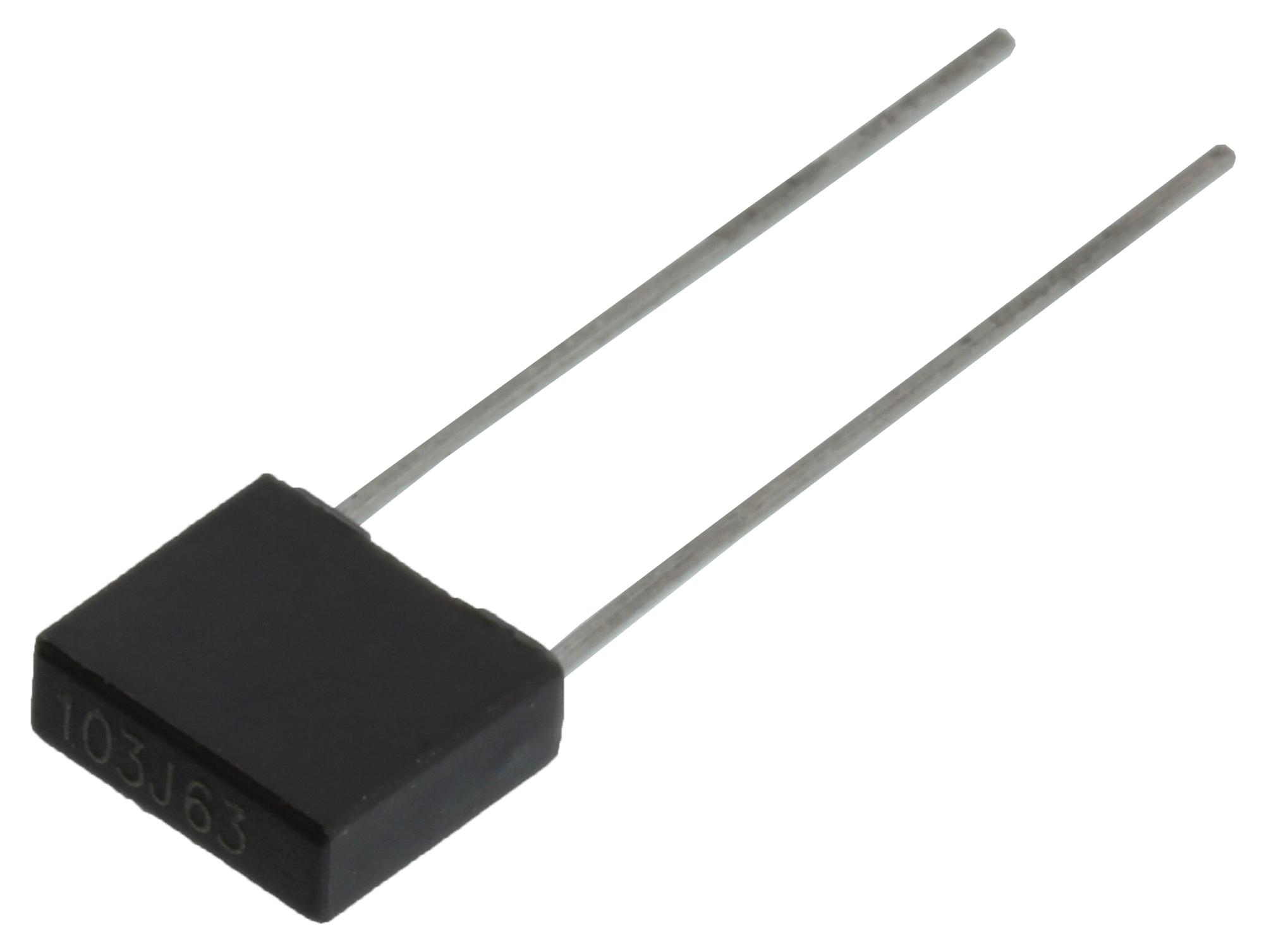

MULTICOMP PRO MCPBSFC1J103KA45 Plastic Film Capacitor
This 5mm plastic film capacitor features metallised polyester construction, rated for 63V DC / 40V AC operation, with a capacitance of 0.01uF. Encapsulated in flame-retardant plastic cases with stand-off feet, it offers high insulation resistance of 215,000 MΩ at 25°C over 20,000 seconds, and a dissipation factor of 2.1% at 1 kHz. Suitable for various electronic applications, it operates from -55°C to +85°C and features a body color of grey, making it ideal for compact, quality film capacitor installations.
MULTICOMP PRO MCPBSFC1J103KA45 Plastic Film Capacitor Specifications:
- Capacitance: 0.01uF
- Working Voltage: 63V DC / 40V AC
- Full Operating Temperature Range: -55°C to +85°C
- Maximum Temperature with Voltage Derating: 85°C
- Insulation Resistance: 215,000 MΩ at 25°C over 20,000 seconds
- Dissipation Factor: 2.1% at 1 kHz
- Dimensions: Max. Width 7.2mm, Max. Height 6.5mm, Max. Depth 25mm
- Body Colour: Grey
- Tolerance: ±10%
- Encapsulation: Flame-retardant plastic case with stand-off feet
- Construction: Metallised polyester, stacked configuration
Buy the Multicomp Series Capacitor: 0.01uF 63V DC - MCPBSFC1J103KA45
Purchase the high-quality plastic film capacitor designed for reliable electronic performance. Featuring metallised polyester construction, 63V DC voltage rating, and a compact 5mm pitch with flame-retardant casing. Ideal for industrial, consumer, and professional electronic applications requiring stable capacitance, excellent insulation resistance, and temperature resilience from -55°C to +85°C. Its grey body and precise dimensions make it easy to incorporate into various circuit designs, ensuring durability and optimal electrical performance with ease of purchase online.
Get Multicomp Series Capacitor 0.01uF 63V DC today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPBSFC1J103KA45?
You can click on the BUY or RFQ button to purchase MCPBSFC1J103KA45 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPBSFC1J103KA45?
You can download the MCPBSFC1J103KA45 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPBSFC1J103KA45?
MULTICOMP PRO
