MULTICOMP PRO MCPL3BCV Navigation Switch

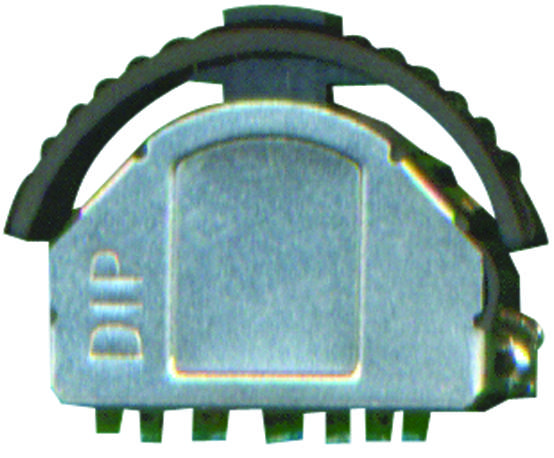

The MCPL3-BC-V is a 3-way single-pole, single-throw navigation switch with solder terminals, stainless steel spring, and a durable black nylon thermoplastic stem and base. It features high reliability for industrial control applications, with a contact resistance of 500 milliohms, insulation resistance of 100 megaohms at 100V DC, and dielectric strength of 100VAC for 1 minute. The switch supports operating temperatures from -10°C to +60°C and has mechanical life of 100,000 cycles. Compact and corrosion-resistant, it is ideal for automation systems, machinery, and electronics requiring robust switching solutions.
MULTICOMP PRO MCPL3BCV Navigation Switch Specifications:
- Operating force: Centre push 200 +100gf, Lever 70 +50gf
- Temperature Range: -10°C to +60°C
- Storage Temperature Range: -30°C to 80°C
- Mechanical Life: 100,000 cycles
- Electrical Life: 100,000 cycles
- Rating: 10mA, 5V DC
- Maximum Contact Resistance: 500 milliohms
- Minimum Insulation Resistance: 100 megaohms at 100V DC
- Dielectric Strength: > 100V AC for 1 minute
- Circuit: Single pole single throw
- Material: Stainless steel (spring and contacts), Nylon high-temperature thermoplastic (cover, base, stem)
- Color: Black
- Contact: Phosphor bronze with silver cladding
- Terminal: Solder type
- Spring: Stainless steel
- Soldering Process: Use a 30-watt soldering iron, maximum 350°C for ~5 seconds
- Maximum operating temperature: 60°C
Buy the Multicomp Pro MCPL3-BC-V – Reliable Navigation Switch for Industrial Applications
Purchase the reliable MCPL3-BC-V navigation switch online today. Designed for industrial automation and control, it features a robust stainless steel spring, solder terminals, and high insulation resistance. With a compact form factor, it offers consistent performance over 100,000 cycles and supports operating conditions from -10°C to +60°C. Its durable nylon thermoplastic components and silver-clad contacts ensure corrosion resistance and electrical stability. Ideal for machinery, control panels, and automation systems, this switch provides dependable switching performance for demanding industrial environments.
Get Multicomp Pro MCPL3-BC-V today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPL3BCV?
You can click on the BUY or RFQ button to purchase MCPL3BCV from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPL3BCV?
You can download the MCPL3BCV datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPL3BCV?
MULTICOMP PRO
