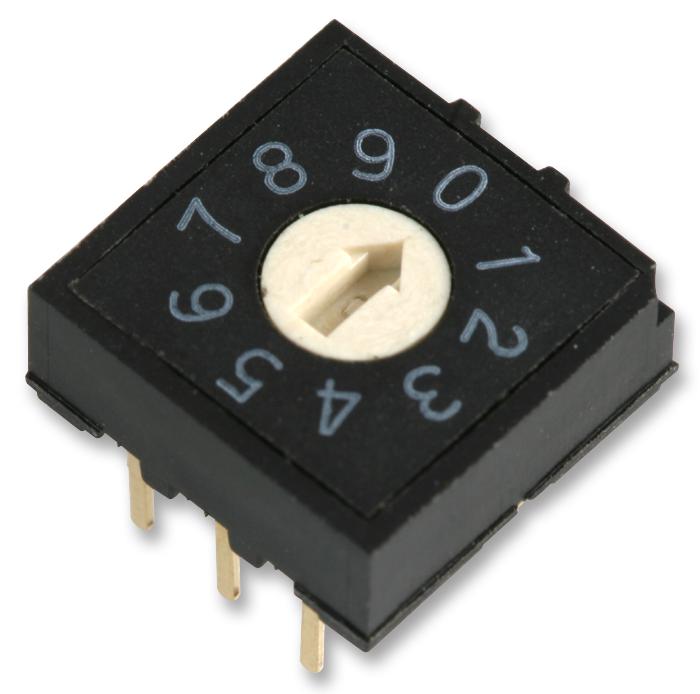

MULTICOMP-PRO MCRH3AF10R Rotary Coded Switch
The MCRH3AF-10R is a durable 10-position through-hole rotary coded switch designed for industrial and automation applications. Featuring a recessed actuator made of Liquid Crystal Polymer (LCP) along with a nylon thermoplastic base and cover, it provides reliable operation with a contact resistance of 100mΩ max. It is rated for 25mA, 24VDC, and operates within a temperature range of -25°C to 80°C. Certified for UL94V-0 flammability standards, it ensures safety and performance in demanding environments, making it suitable for complex wiring and control systems.
MULTICOMP-PRO MCRH3AF10R Rotary Coded Switch Specifications:
- Contact Rating: 25mA, 24VDC
- Contact Resistance: 100mΩ Max
- Insulation Resistance: > 100MO Min at 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Operating Force: 400gf*cm max
- Operating Life: 20,000 steps
- Operating Temperature: -25°C to +80°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 10-position, 36° angle, through-hole
- Actuator Material: Liquid Crystal Polymer (LCP)
- Base Material: Nylon thermoplastic
- Compliance: RoHS, UL94V-0 flammability standard
Buy the Multicomp Pro MCRH3AF-10R – Reliable Rotary Switch for Industrial Applications
Enhance your industrial control systems with the robust and reliable Rotary Coded Switch. The MCRH3AF-10R offers a durable design with a Liquid Crystal Polymer actuator, UL94V-0 compliance, and excellent electrical ratings. Perfect for automation and wiring applications, it ensures smooth operation over 20,000 steps within a temperature range of -25°C to 80°C. Purchase online today to upgrade your control solutions with this high-quality, safe, and efficient rotary switch that guarantees performance and safety in demanding environments.
Buy Multicomp Pro MCRH3AF-10R now and ensure dependable control in your industrial automation projects with high durability and precise coding features.
