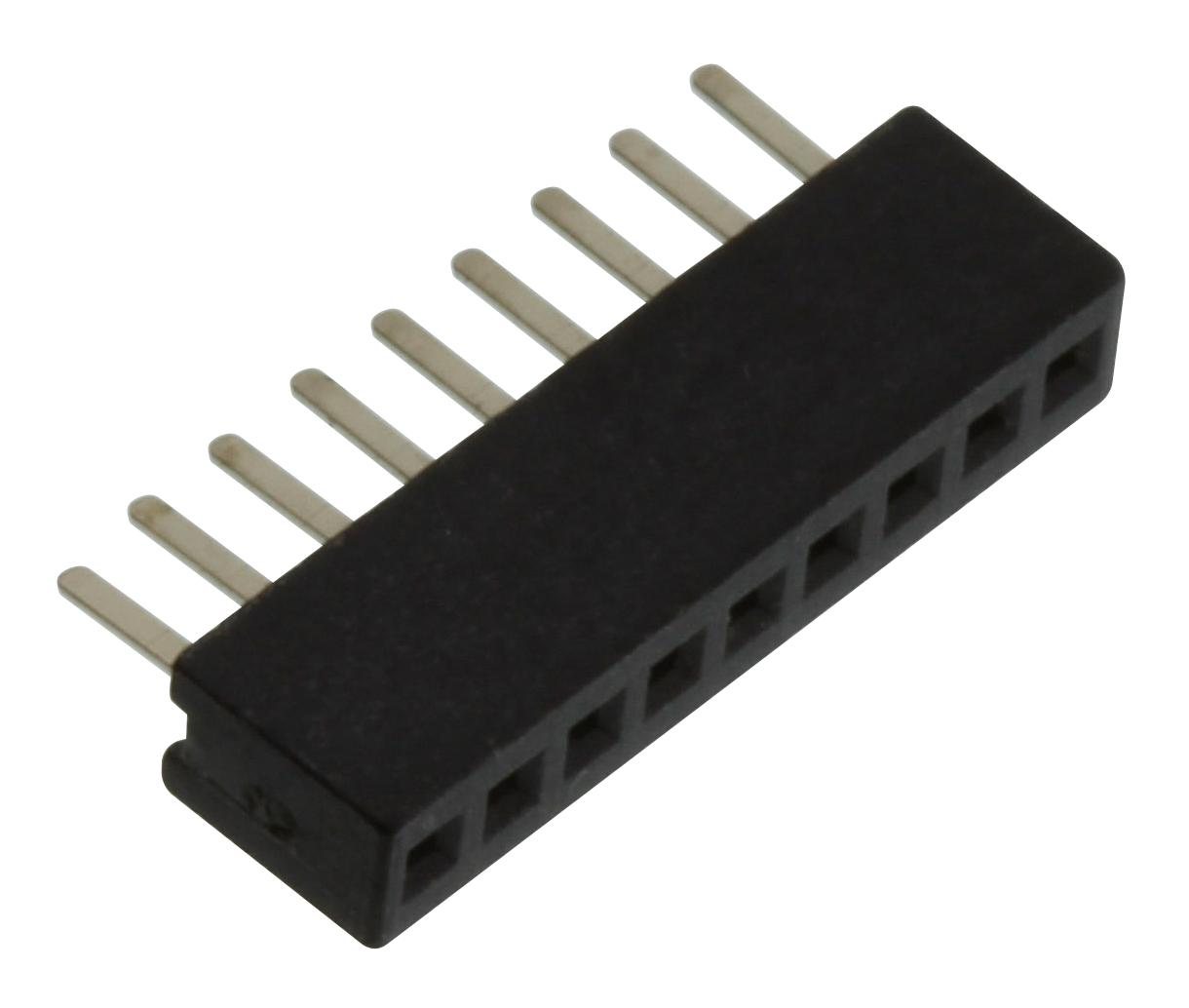

MULTICOMP PRO MCSVT1S09G PCB Socket
This 1.27mm PCB socket offers reliable electrical and mechanical connections for through-hole applications. Designed for vertical mounting, it features a 3.4mm height suitable for compact circuit designs. The socket supports current ratings up to 1A AC/DC, with a voltage rating of 50V AC/DC. Its copper alloy contact is gold-plated for enhanced durability and corrosion resistance. Constructed from high-temperature nylon (UL94V-0), it withstands temperatures from -25°C to +105°C. An ideal choice for precise, durable connections in electronic assemblies requiring a single row, 2-position design.
MULTICOMP PRO MCSVT1S09G PCB Socket Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Material and Finish: High temp. Plastic Nylon 9T UL94V-0, Copper Alloy, Gold Plated
- Dimensions: Length varies with number of positions, typical 1.27mm pitch, 3.4mm height
- RoHS Compliant
- Diagram: 1.27X(No. Of Positions) +0.4+0.30
Buy the Multicomp 1.27mm PCB Socket – Reliable Vertical Through Hole Connectors for Industrial Applications
Order the Multicomp 1.27mm PCB socket online now and enhance your electronic projects with a reliable, durable, and precisely engineered connection solution. Crafted for vertical mounting with a 3.4mm height, this socket supports current up to 1A and voltage up to 50V, ensuring safe operation. The high-quality copper alloy contact is gold-plated for corrosion resistance, while the high-temp nylon insulator guarantees thermal stability. Perfect for compact, high-performance circuits, this socket ensures secure, long-lasting connections in industrial and electronics manufacturing applications.
Get Multicomp 1.27mm PCB Socket today—built for precision and long-lasting durability in electronic assembly.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSVT1S09G?
You can click on the BUY or RFQ button to purchase MCSVT1S09G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSVT1S09G?
You can download the MCSVT1S09G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSVT1S09G?
MULTICOMP PRO
