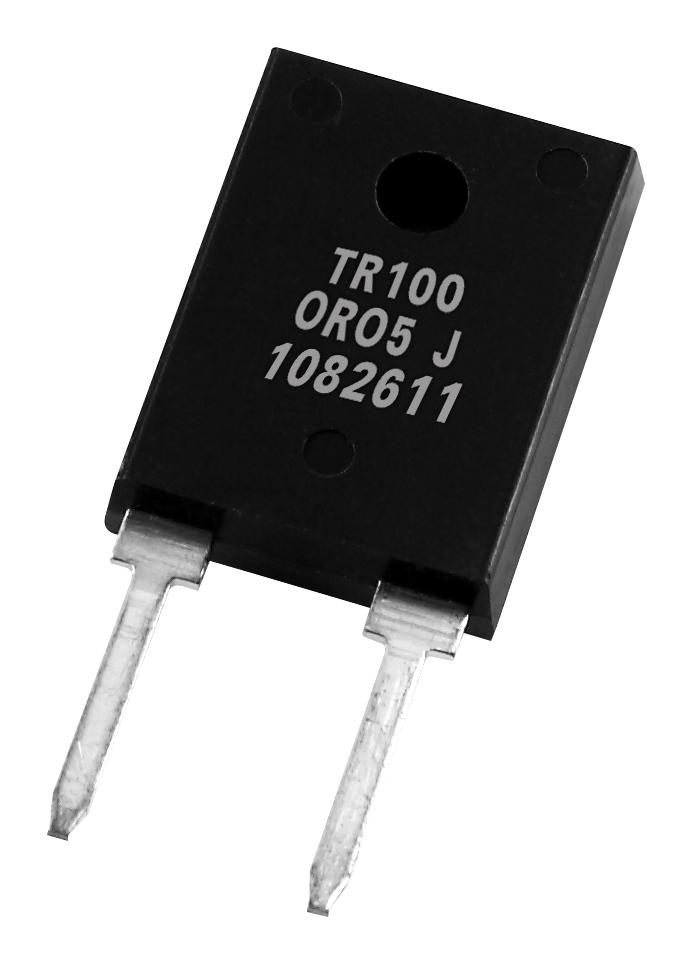

MULTICOMP PRO MCTR100JDD0470 Power Resistor
Power resistors with a 100-watt capacity, designed for high-power applications such as gate resistors, snubbers, and voltage regulation in industrial electronics. These resistors feature a molded case for protection, electrical isolation, and a non-inductive design. Mountable via a single M3 screw onto heat sinks, they support operating voltages up to 700V and are rated for use up to 175°C. Suitable for high-frequency, transient, and pulse load applications with tight tolerance options, ensuring reliable performance in demanding environments.
MULTICOMP PRO MCTR100JDD0470 Power Resistor Specifications:
- Power Rating: 100W at 25°C case temperature
- Operating Voltage: Max 700V
- Dielectric Strength: 1,800V AC
- Resistance Range: 0.050 to 19 Ohms (Type 1%), 0.1 to 100k Ohms (±5%)
- Temperature Coefficient: -100 to +200 PPM/°C
- Working Temperature Range: -65°C to +175°C
- Construction: Alumina substrate with resistor layer, molded case, Tinned copper leads
- Mounting: Single M3 screw, heat sink mounted
- Environmental Resistance: Load life 2,000 hours at rated power, moisture resistance, thermal shock tested
- Compliance: RoHS
- Certifications: UL and CSA compliant
Buy the Multicomp Power Resistors 100W – Reliable Industrial Resistors for Applications
Order multicomp power resistors today for your industrial and electronic projects. These 100W rated resistors offer high power handling, robust molded cases, electrical isolation, and non-inductive design. Perfect for applications like voltage regulation, snubbers, and power supply gate resistors, they deliver dependable performance even under transient and pulse loads. Mount easily with M3 screws onto heat sinks, supporting up to 700V and working temperatures up to 175°C. Secure your supply chain by purchasing online for quick delivery and consistent quality.
Get multicomp power resistors 100W today—designed for high-power industrial applications with reliable performance and easy heat sink mounting.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTR100JDD0470?
You can click on the BUY or RFQ button to purchase MCTR100JDD0470 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR100JDD0470?
You can download the MCTR100JDD0470 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTR100JDD0470?
MULTICOMP PRO
