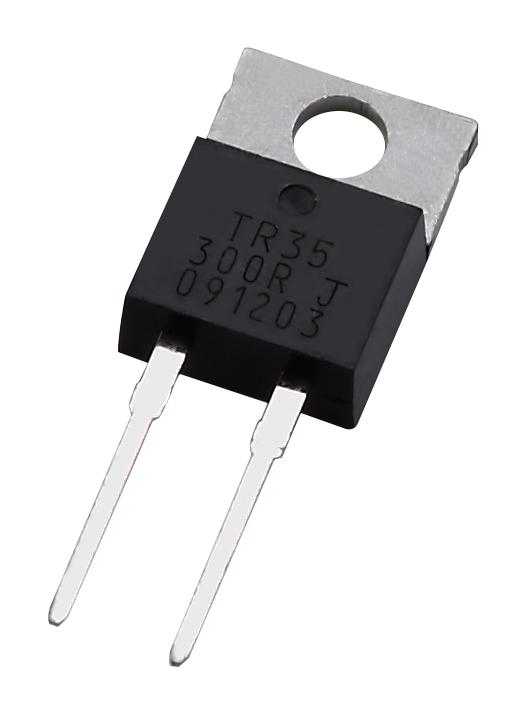

MULTICOMP-PRO MCTR35JDE0150 Power Resistor
The multicomp Power Resistor series offers a robust, heat sink-mounted 35-watt resistor in a TO-220 style package designed for switching power supplies, RF amplifiers, and voltage regulation. Its non-inductive, electrically isolated molded case ensures protection and easy mounting, with single screw attachment to heat sinks. Operating within -65°C to +150°C, it features low TCR, high dielectric strength, and load life stability. Ideal for automatic machine controllers, snubber circuits, UPS systems, and low energy pulse loads, this resistor provides reliable performance in demanding electronic applications.
MULTICOMP-PRO MCTR35JDE0150 Power Resistor Specifications:
- Power Rating: 35 Watts at 25°C case temperature
- Package: TO-220 style heat sink mounted
- Resistance Range: 0.50 - 100kΩ
- Resistance Tolerance: ±5%, ±10%, ±20%, ±40.5%
- Operating Voltage: Max 350V
- Dielectric Strength: 1800VAC
- Insulation Resistance: ≥10GΩ
- Working Temperature Range: -65°C to +150°C
- Lead Material: Tinned Copper
- Maximum Torque: 0.9 N-m
- Environmental Ratings: Load Life AR +1.0% (2000 hrs), Short Time Overload AR +40.3%
- Temperature Coefficient of Resistance: Referenced to +25°C, AR at +105°C
- Thermal Shock: 100 cycles from -65°C to +150°C with AR +0.3%
- Vibration and Shock: Meets specified AR limits
- Soldering Conditions: Wave solder at 260°C for 10s, iron solder at 410°C for 5s
- Dimensions: approximately 28.7 mm length, 8.6 mm width, with proper mounting and heat dissipation features
Buy the Multicomp Series Power Resistor: MCTR35JDE0150
Get the Multicomp Series Power Resistor MCTR35JDE0150 online today for dependable, high-performance power resistance in your electronic projects. Featuring a 35-watt rating, durable heat sink mounting, and broad resistance options from 0.50Ω to 100kΩ, this resistor is suitable for switching power supplies, RF amplifiers, and voltage regulation applications. Its robust construction, high dielectric strength, and thermal stability ensure long-lasting performance. Easy to install and compatible with wave or iron soldering, buy online now for reliable circuit protection and energy management.
Order your Multicomp Series Power Resistor MCTR35JDE0150 today and ensure your electronic circuits operate reliably under high load conditions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTR35JDE0150?
You can click on the BUY or RFQ button to purchase MCTR35JDE0150 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR35JDE0150?
You can download the MCTR35JDE0150 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTR35JDE0150?
MULTICOMP-PRO
