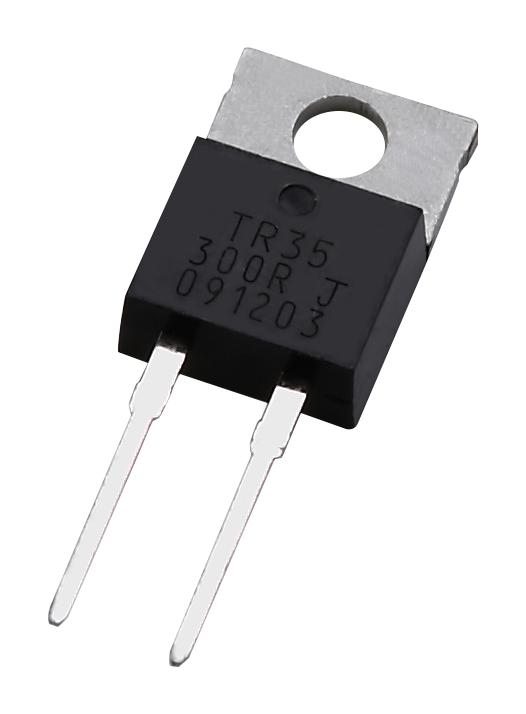

MULTICOMP PRO MCTR35JDE6801 Power Resistor
The multicomp power resistor is a RoHS-compliant, high-power component rated for 35 watts at 25°C, housed in a TO-220 style package with a molded case for protection. Designed for applications like switching power supplies, snubber circuits, RF power amplifiers, and voltage regulation, it features a non-inductive, electrically isolated case with single screw mounting to heat sinks. Its construction includes a flange, alumina substrate, resistor layer, lead, and molding, and is capable of operating from -65°C to +150°C with a maximum operating voltage of 350V. The resistor exhibits reliable environmental characteristics, high dielectric strength, and thermal stability.
MULTICOMP PRO MCTR35JDE6801 Power Resistor Specifications:
- Power Rating: 35W at 25°C case temperature
- Package Style: TO-220, heat sink mounted
- Construction: Flange, alumina substrate, resistor layer, lead, molding
- Max Operating Voltage: 350V
- Dielectric Strength: 1800VAC
- Insulation Resistance: 10GΩ min.
- Temperature Range: -65°C to +150°C
- Resistance Range: <1Ω available
- TCR (PPM/°C): +50 to +300 depending on tolerance
- Environmental Tests: Load life +1.0% over 2000 hours, damp heat, thermal shock, vibration
- Lead Material: Tinned copper
- Maximum Torque: 0.9 N-m
- Soldering Conditions: Max 260°C wave soldering for 10s, iron soldering for 5s
- Dimensions: Approximate length 28mm, width 4.0mm to 0.7mm, height 60mm
Buy the Buy multicomp Power Resistor Part Number MCTR35JDE6801 Online
Get your multicomp Power Resistor MCTR35JDE6801 today from our online store for fast delivery and competitive pricing. This 35W high-power resistor in TO-220 package is ideal for switching power supplies, RF amplifiers, and voltage regulation applications. Its durable molded case provides protection and easy mounting, while its wide temperature range from -65°C to +150°C ensures stability in demanding environments. Perfect for industrial, automation, and electronic projects, this resistor offers reliable performance, RoHS compliance, and excellent electrical characteristics. Buy online now to experience dependable power solutions.
Order your multicomp Power Resistor MCTR35JDE6801 today and ensure your power circuits operate reliably with high wattage and thermal stability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTR35JDE6801?
You can click on the BUY or RFQ button to purchase MCTR35JDE6801 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR35JDE6801?
You can download the MCTR35JDE6801 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTR35JDE6801?
MULTICOMP PRO
