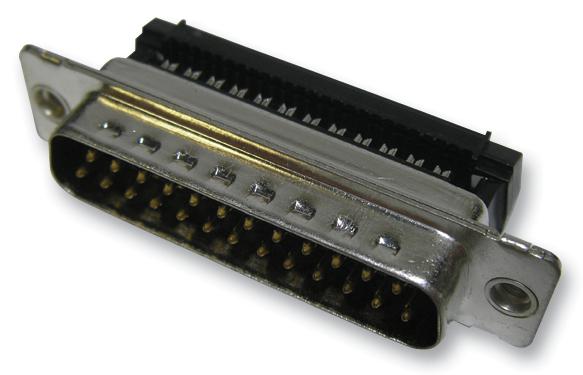

MULTICOMP PRO MH10569 IDC Connectors
The Metal ‘D’ Tin and Dimple Connectors are IDC (Insulation Displacement Connectors) designed for reliable electrical connections. Featuring tin and dimple shells, these connectors support high currents up to 215A, with test voltage ratings of 1,000 V. They include glass-filled polyester insulators, stamped steel shells with tin plating, and copper alloy contacts, some with gold or tin plating. The design accommodates various configurations, with options for threaded or unthreaded versions, enabling secure, space-efficient connections suitable for industrial wiring and automation systems.
MULTICOMP PRO MH10569 IDC Connectors Specifications:
- Working Current: 215A
- Test Voltage: 1,000 V
- Insulation Resistance: 5,000 MQ
- Contact Resistance: Less than 10mQ
- Temperature Range: -55°C to +125°C
- Material: Insulator - Glass filled polyester black; Shell - Stamped steel tin plated; Contacts - Copper alloy
- Contact Plating: 1.5 micron Tin and 0.2 micron gold
- Dimensions vary by model, typical height after crimping 18.5 mm, with strain relief options, and terminal sizes for 9, 15, 25, or 37 ways
Buy the Buy Multicomp Connectors ID Tins and Dimples Part Number MH10569 Online
Order the Multicomp IDC Connectors online today. These high-current, reliable connectors feature tin and dimple shells, glass-filled polyester insulators, and customizable threaded or unthreaded versions. Perfect for industrial wiring, automation, and electrical panel applications, they support up to 215A with standard and threaded options for versatile installation. High insulation resistance, test voltage capacity, and optional gold or tin plating make these connectors suitable for demanding environments. Purchase now for quick delivery and trusted quality.
Get Multicomp Metal ‘D’ Tin and Dimple Connectors MH10569 today—designed for high current transmission with reliable insulation displacement and secure connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MH10569?
You can click on the BUY or RFQ button to purchase MH10569 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MH10569?
You can download the MH10569 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MH10569?
MULTICOMP PRO
