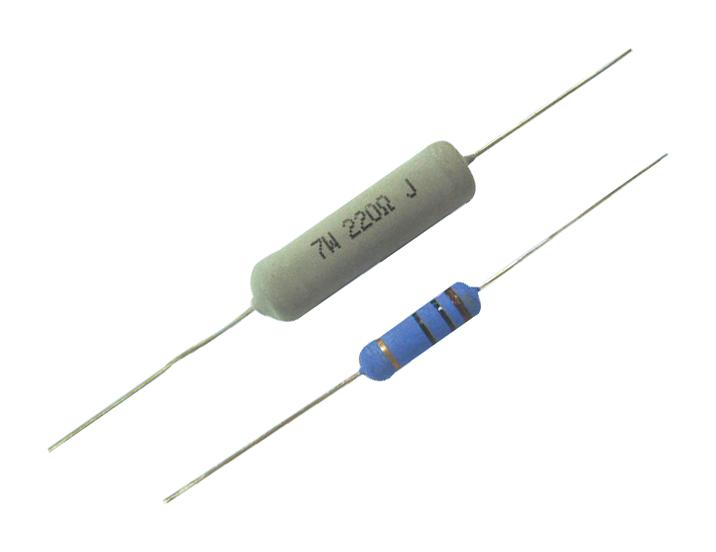

MULTICOMP PRO MOR01SJ0682A10 Metal Oxide Resistor
The Metal Oxide Film Resistor offers high stability in harsh environments with a high-purity ceramic core, meeting EIA-RC2655A and safety standards. It features excellent flame retardant coating, stable performance across temperature cycles, humidity, and load life in humidity conditions. Available in multiple resistance values including low and high ohmic ranges, the resistor is non-flammable and designed with a robust coating for durability. Suitable for demanding electronic applications, it ensures reliable connections with at least 95% solderability coverage. Its performance characteristics make it ideal for precise, long-lasting circuit protection and control components.
MULTICOMP PRO MOR01SJ0682A10 Metal Oxide Resistor Specifications:
- Power Rating: 0.5 W at 25°C, overloading voltage 250 V, maximum voltage 400 V
- Resistance Range: 10Ω to 680Ω, standard E-24 series with +5% tolerance
- Temperature Coefficient: £350PPM/°C
- Resistance Values: 10Ω, 15Ω, 22Ω, 33Ω, 47Ω, 68Ω, 100Ω, 150Ω, 220Ω, 330Ω, 470Ω, 680Ω, 1KΩ, 1.5KΩ, 2.2KΩ, 3.3KΩ, 4.7KΩ, 6.8KΩ, 10KΩ, 15KΩ, 22KΩ, 33KΩ, 47KΩ, 68KΩ, 100KΩ
- Material: Metal oxides film element with high-purity ceramic core
- Coating: Non-flammable, flame retardant coating with at least 95% solderability coverage
- Dimensions: Normal size (approximate length 6.4mm, diameter 2.9mm), small size (approximate length 4.9mm, diameter 2.0mm)
- Standards: Meets EIA-RC2655A, UL flammability, and high safety standards
- Environmental Resistance: Stable in humidity, temperature cycling, surges, and load conditions
- Reliability: Resistant to solvent, soldering heat, and mechanical stress
Buy the Multicomp Series Metal Oxide Resistor: MOR01SJ0682A10
Purchase the Multicomp series Metal Oxide Resistor MOR01SJ0682A10 online today for reliable circuit protection and control. Designed with a high-purity ceramic core and flame retardant coating, this resistor provides high stability and excellent durability across harsh environmental conditions. It offers a wide resistance range from 10Ω to 680Ω, suitable for precise applications. Its compliance with safety standards and at least 95% solderability coverage ensure consistent performance and easy assembly. Perfect for electronics professionals seeking durable, high-quality resistors for demanding projects.
Get Multicomp series Metal Oxide Resistor MOR01SJ0682A10 today—built for precision and long-lasting durability in demanding circuits.
