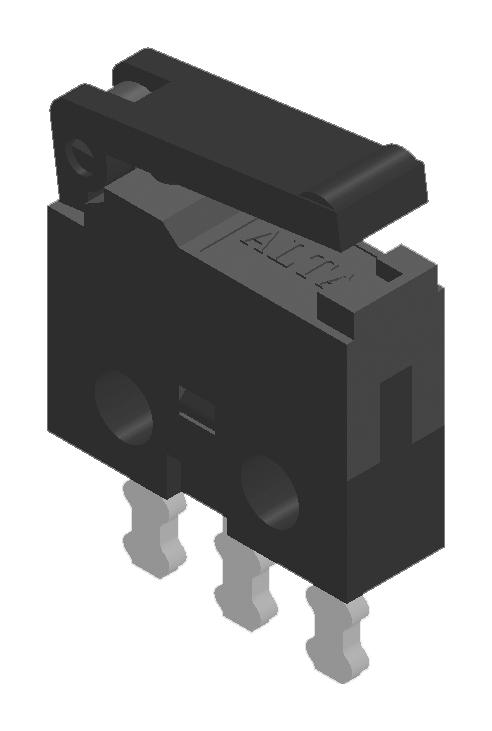

MULTICOMP PRO MP000803 Hinge Lever Microswitch
This industrial microswitch features a hinge lever and a 0.5A, 30V DC rating, suitable for precise control in small electronic devices. Designed for through-hole mounting, it offers high durability with 100,000 mechanical cycles and 50,000 electrical cycles, ensuring long-lasting performance. The switch operates within a temperature range of -40°C to +85°C, with a contact resistance of less than 100mΩ and insulation resistance of at least 100MΩ. With various operating forces and stable operating positions, it is ideal for mapping, audio equipment, and portable electronics requiring reliable, snap-action switching.
MULTICOMP PRO MP000803 Hinge Lever Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: < 100mΩ
- Insulation Resistance: ≥ 100MΩ (at 500V DC)
- Dielectric Strength: 250V AC for 1 min between terminals and ground
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max.
- Release Force: 0.03N Min.
- Over Travel: 0.3mm Min.
- Movement Differential: 0.7mm Max.
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max.
- Pretravel: 1.8mm Max.
- Terminal Type: Uneven Pitch
- Dimensions: Millimetres as per datasheet
Buy the Buy Premier Farnell Through Hole Microswitch Part Number MP000803 Online
Purchase the Premier Farnell Hinge Lever Microswitch online today. Designed for industrial robustness, it offers a contact rating of 0.5A, 30V DC, and an operating temperature range from -40°C to +85°C. Ideal for small electronic and mapping devices, this switch provides extended durability with up to 100,000 mechanical cycles. Its compact size, high insulation resistance, and precise operating forces make it suitable for portable electronics, audio equipment, and automation controls, ensuring reliable performance in demanding environments.
Get Premier Farnell MP000803 today—built for durability, high precision, and reliable snap-action switching in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000803?
You can click on the BUY or RFQ button to purchase MP000803 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000803?
You can download the MP000803 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000803?
MULTICOMP PRO
