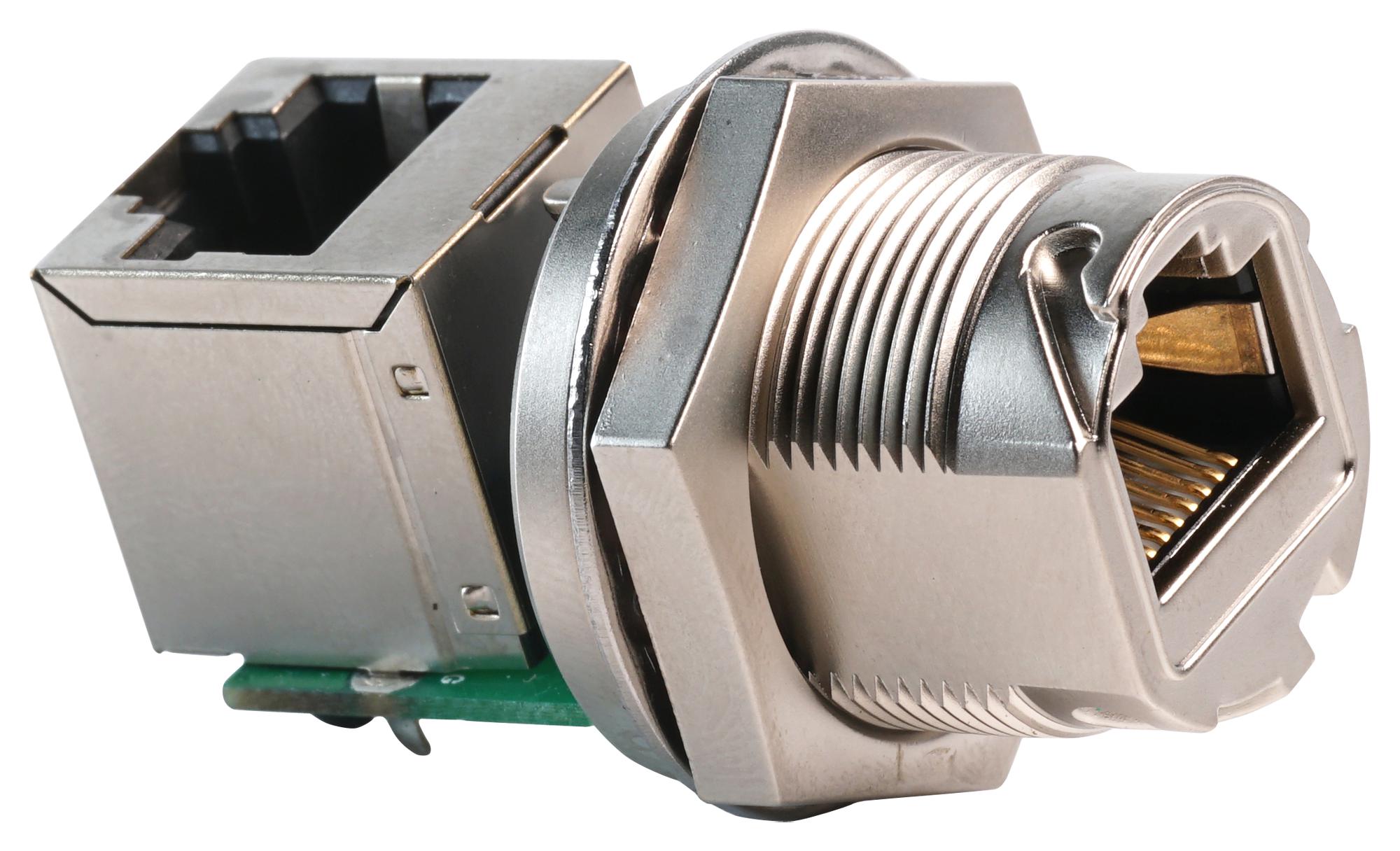

MULTICOMP PRO MP002460 RJ45 Metal Connector
The MP RJ45 Ethernet metal series connectors are constructed from nickel-plated copper alloy with gold-plated contacts, ensuring durability and high-quality connectivity. These environmentally sealed, IP68-rated panel-mount connectors are fully rear potted for added protection, even when unmated or without the sealing cap. They are available with DIP terminations, pre-wired configurations, or as couplers featuring RJ45 sockets on either side. Designed to fit a 20.75mm cut-out, these connectors feature lock or screw mechanisms, ideal for automation, networking, and industrial applications.
MULTICOMP PRO MP002460 RJ45 Metal Connector Specifications:
- IP Rating: IP68
- Panel Thickness: 0.8mm to 3mm
- Recommend Torque: 119 to 20Kgf-cm
- Housing Material: Zinc Alloy; Finish: Ni Plated
- Contacts Material: Copper Alloy; Finish: Au Plated
- Cable Diameter: 6mm to 8.5mm
- Gland Nut Torque: 9 to 10 Kgf-cm
- Dimensions: Fit for 20.75mm cut-out
- Sealing: Fully rear potted, IP68 environment sealing
- Application: Industrial networking, automation, process control, testing
Buy the Buy Multicomp RJ45 Metal Part Number MP002460 Online
Order the high-quality Multicomp RJ45 Metal Connector online today for reliable, environment-sealed networking solutions. Designed with durable zinc alloy housing and gold-plated contacts, this IP68-rated panel mount connector provides excellent protection against dust and water ingress, making it perfect for industrial environments. Its compatibility with 0.8mm to 3mm panel thicknesses and secure screw or lock mechanisms ensure a firm, reliable connection. Suitable for automation, networking, and testing applications, this connector offers long-lasting performance and easy installation, ensuring seamless connectivity in demanding conditions.
Get Multicomp RJ45 Metal MP002460 today—built for precision, durability, and secure industrial connectivity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002460?
You can click on the BUY or RFQ button to purchase MP002460 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002460?
You can download the MP002460 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002460?
MULTICOMP PRO
