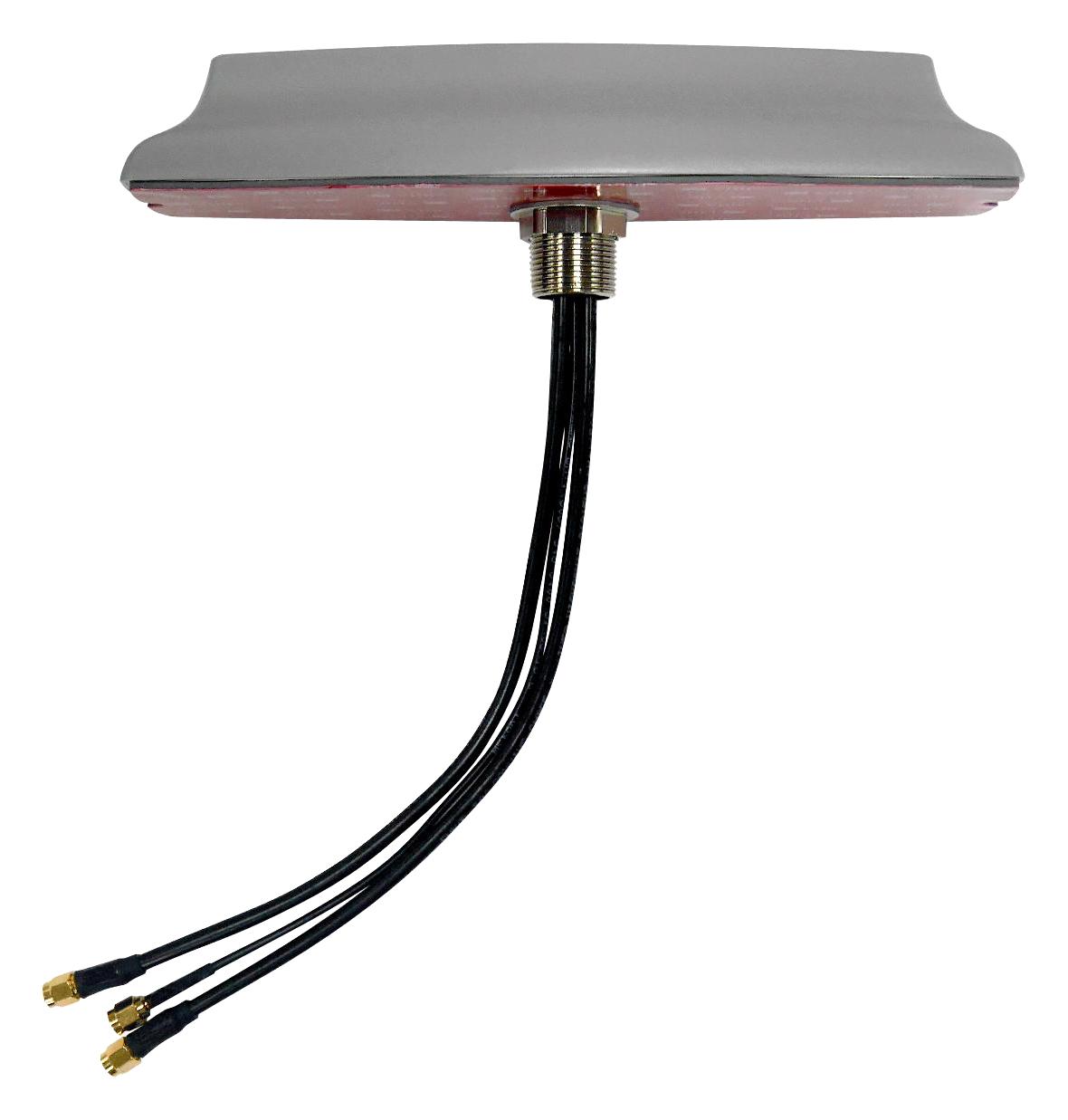

MULTICOMP PRO MP001580 Outdoor LTE GPS Antenna
The outdoor LTE and GPS combo antenna features 2 LTE bands and 1% GPS receiver, rated IP67 for waterproof durability, suitable for outdoor applications. It operates across multiple frequency ranges including 698-960MHz, 1710-2170MHz, and 2500-2690MHz for LTE, with high efficiency and power handling capacity of 2W. The antenna has a compact design with dimensions of 240mm length, 65.6mm width, and 38.7mm height, housed in a grey PC enclosure rated UL 94 V-0. It includes 3-meter cables for LTE (LMR-200) and GPS (LMR-100A) connections, and AESMA connector for robust outdoor deployment.
MULTICOMP PRO MP001580 Outdoor LTE GPS Antenna Specifications:
- Frequency Range: 698MHz to 960MHz, 1710MHz to 2170MHz, 2300MHz to 2690MHz
- GPS Frequency: 1575.42MHz to 1602MHz
- Polarization: Linear
- HPBW/Horizontal: 360°
- HPBW/Vertical: 60°
- Peak Gain: 3.3dBi Max for LTE, 29.2dB and 29dB for GPS
- Efficiency: 70% typical for LTE
- VSWR: Max 3:1 for LTE, Max 12:1 for GPS
- Power Handling: 2W (cw)
- Connector: SMA Plug
- Housing Material: PC (UL 94 V-0)
- Waterproof Rating: IP67
- Operating Temperature: -40°C to +70°C
- Humidity: 95% @ 55°C
- Cable Length: 3 meters (LTE: LMR-200, GPS: LMR-100A)
- Dimensions: 240mm (L) x 65.6mm (W) x 38.7mm (T)
Buy the Multicomp Series Outdoor LTE GPS Combo Antenna: MP001580
Enhance your outdoor communication setup with this rugged LTE and GPS combo antenna featuring IP67 enclosure, high efficiency, and multiple frequency support. With a compact design, 3-meter cables for LTE and GPS, SMA connectors, and operating temperatures from -40°C to +70°C, it ensures reliable indoor and outdoor performance. Perfect for remote locations or industrial applications, this antenna provides stable signals and high durability, making it an essential component for robust wireless connectivity in challenging environments.
Buy Multicomp Series outdoor LTE and GPS combo antenna MP001580 now and experience reliable outdoor connectivity with IP67 durability and high performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001580?
You can click on the BUY or RFQ button to purchase MP001580 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001580?
You can download the MP001580 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001580?
MULTICOMP PRO
