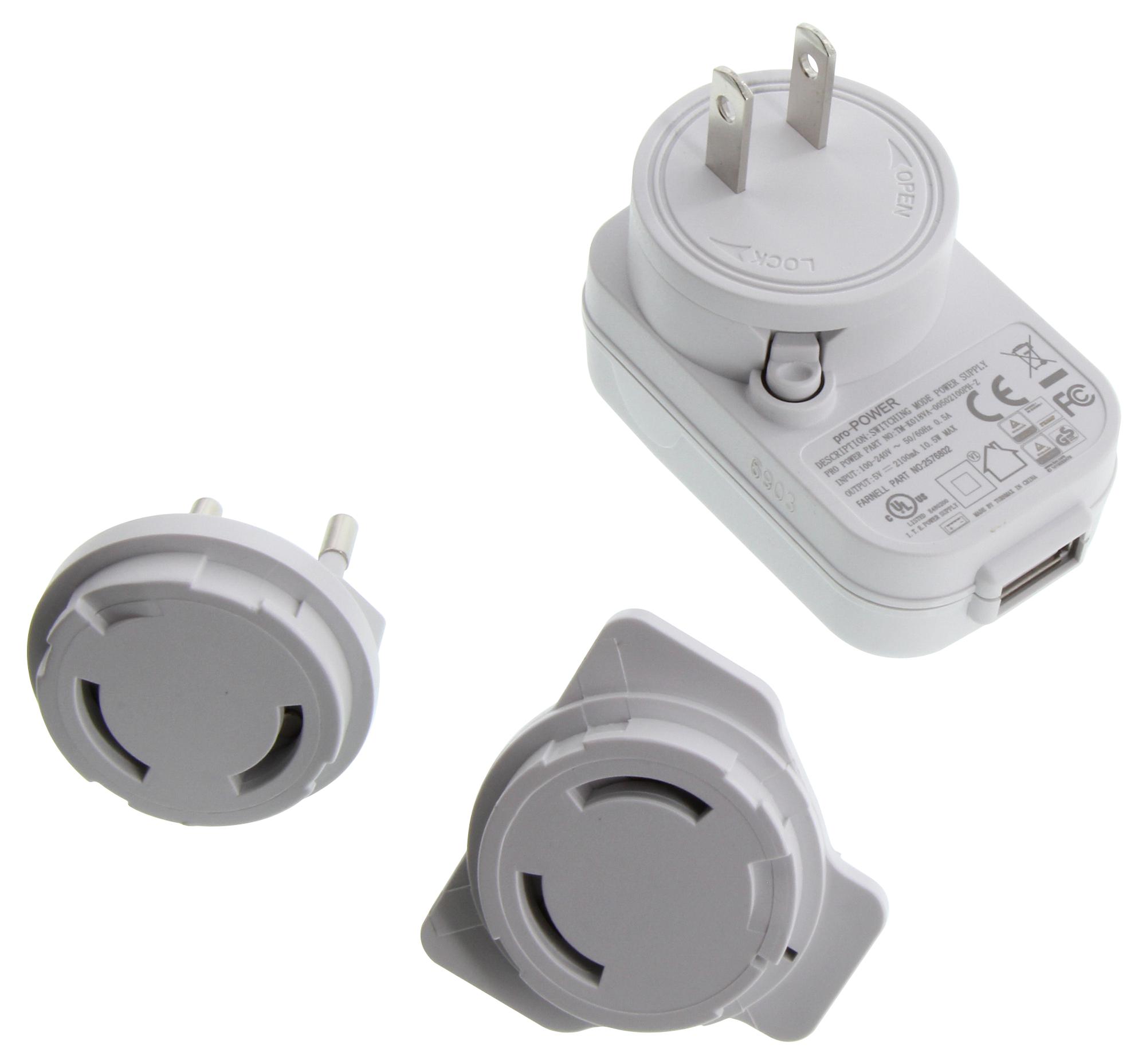

MULTICOMP PRO TMK018VA00502100PHZ Wall Mount Power Adapter
This high-efficiency wall mount power adapter offers a wide input voltage range of 100V AC to 240V AC, supporting both 50Hz and 60Hz frequencies. It features protection functions including SCP, OVP, and OCP, ensuring safe operation. The adapter provides a constant voltage mode with optional output modes such as wire or USB Micro B connector. It complies with RoHS, CoC V5, and DoE VI energy standards, with a maximum power dissipation of less than 0.075W at no load. Its compact design makes it ideal for various electronic and industrial applications.
MULTICOMP PRO TMK018VA00502100PHZ Wall Mount Power Adapter Specifications:
- Rated Input Voltage: 110V-240V AC, 0.5A
- Rated Input Frequency: 50/60Hz
- Inrush Current: 80A at 230V AC
- Efficiency: Minimum 78% at full load
- Input Voltage Range: 100V-240V AC
- Input Frequency Range: 47Hz-63Hz
- No-Load Power Dissipation: Less than 0.075W at 115V/230V AC
- Output Voltage Range: 4.94V to 5.46V
- Ripple and Noise Max.: 2.5A
- Turn-on Delay Time: Max. 3.0s at 100V AC
- Rise Time: Max. 100ms at 90V AC
- Protection: Short circuit, over voltage, over current
- Operating Temperature: -0°C to +40°C
- Storage Temperature: -25°C to +85°C
- Relative Humidity: 10% to 90% RH during operation, 10% to 100% RH during storage
- Vibration: 10-300Hz sweep, 1.0G acceleration
- MTBF: at least 30,000 hours at 25°C
- Burn-in: 4 hours at 40°C +5°C
Buy the Buy multicomp Wall Mount Power Adapter Part Number TMK018VA00502100PHZ Online
Enhance your electronic setup with this reliable wall mount power adapter from multicomp. Featuring wide input voltage support, high efficiency, and essential protection functions, it ensures safe and consistent power delivery for various devices. Its compact design with USB Micro B output makes it ideal for industrial, commercial, or personal applications. Easy to install, RoHS compliant, and built for durability, it is the perfect choice for reliable power needs. Order online now to secure high-quality power solutions for your projects.
Order your multicomp SeriesTMK018VA00502100PHZ power supply today and ensure reliable energy delivery for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO TMK018VA00502100PHZ?
You can click on the BUY or RFQ button to purchase TMK018VA00502100PHZ from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part TMK018VA00502100PHZ?
You can download the TMK018VA00502100PHZ datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of TMK018VA00502100PHZ?
MULTICOMP PRO
