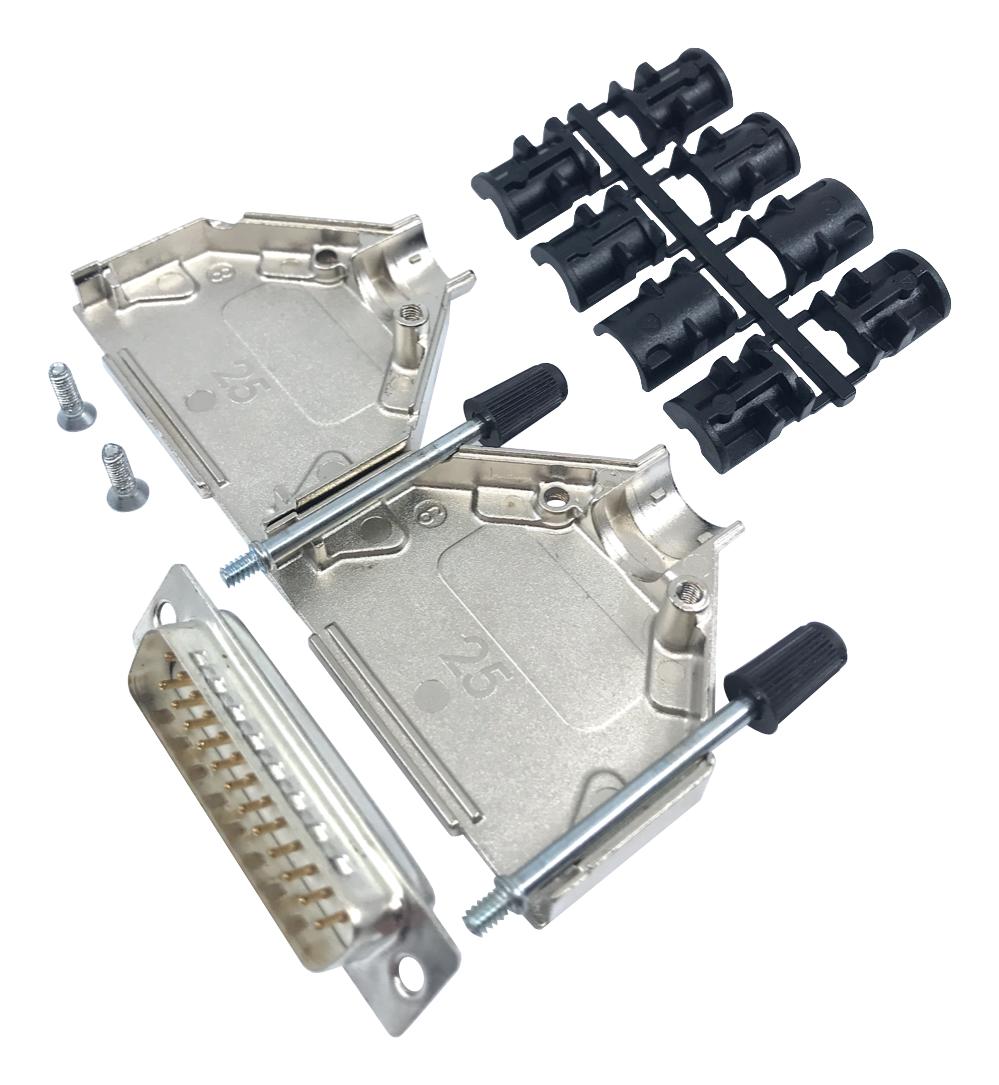

MULTICOMP PRO MP002029 D-Sub Connector with Backshell
This D-Sub connector with backshell offers high reliability for industrial and electronic applications. It features zinc, nickel-plated shells, and accepts round foil and braided cables. The connector provides effective electromagnetic and RF interference minimization with a robust construction. Suitable for various sizes including DE-9, DA-15, DB-25, and DC-37, it includes long UNC 4-40 jackscrews for secure attachment. Designed for temperatures from -55°C to +105°C, it ensures excellent insulation resistance over 1000 MΩ and withstands voltages up to 1 kV, making it ideal for industrial, measurement, and communication systems.
MULTICOMP PRO MP002029 D-Sub Connector with Backshell Specifications:
- Material: Zinc, Ni-plated
- Temperature Range: -40°C to 120°C
- Cable Strain Relief: Polycarbonate, UL94 V-0
- Cable Diameter: 17mm to 23mm
- Locking Screws: Long jackscrews UNC 4-40, Black
- Insulator Material: PBT, UL94 V-0
- Shell Material: Steel, Tin-plated
- Contact Material: Copper alloy
- Contact Plating: Selective Gold over Nickel
- Attenuation Factor: > 40 dB between 30 MHz and 1GHz
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 minute
- Electrical: Class 3, 100 inserts minimum
Buy the multicomp MP002029 – Reliable D-Sub Connector with Backshell for Industrial Applications
Enhance your electronic and industrial systems with this durable D-Sub connector featuring zinc backshell, offering excellent EMI shielding, secure UNC 4-40 jackscrews, and high temperature tolerance from -55°C to +105°C. Its robust steel shell, gold-plated contacts, and compatibility with round foil and braided cables make it ideal for demanding environments. Easy to assemble without special tools, it ensures reliable electrical connections and long-term durability for measurement, communication, and automation applications. Order online today for quick delivery and expert support.
Buy multicomp MP002029 now and experience unmatched reliability and performance in industrial connector solutions.
