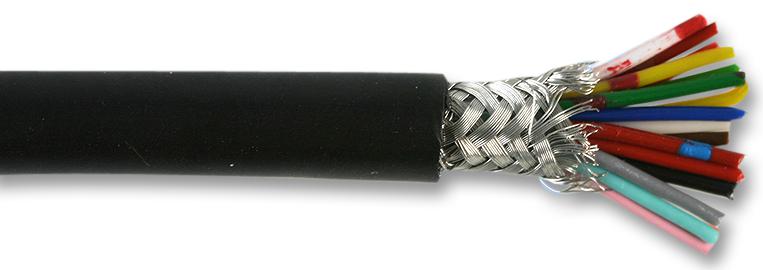

MULTICOMP PRO PP000324 Screened Multicore Cable
This screened multicore cable, manufactured to Defence Standard 61-12 Part 4, offers high-density wiring for electronic equipment and instruments. Built with electrolytic annealed tinned copper conductors and a PVC insulation and outer sheath, it is designed for reliable performance within specified temperature ranges of 10°C to +70°C. The braid screen enhances shielding with a 0.1mm braid fill factor. Suitable for use at a nominal voltage of 440V AC rms at 1600Hz, this cable ensures durable, high-quality electrical connections for sophisticated electronic systems and applications requiring electromagnetic interference reduction.
MULTICOMP PRO PP000324 Screened Multicore Cable Specifications:
- Conductor: Electrolytic Annealed Tinned Copper, 7/0.2mm, Resistance: 92Q/km
- Insulation: PVC to BS676, Radial Thickness: 0.3mm, Insulation Resistance: Min. 100MOxkm
- Outer Sheath: Black and Grey PVC (RAL 7001), BS6746 Type 6, Temperature Range: 10°C to +70°C
- Braid Screen: 0.1mm, Fill Factor: 70%, Shielding for EMI Reduction
- Voltage Rating: 440V AC rms at 1600Hz, Min. Bending Radius: 6 x cable diameter
- Jacket Diameter: 8.2mm, Reel Length: 100m, Part Number: PP000324, Suitable for high-density wiring and electronic instrumentation
- Uses: Suitable for electronics, instrumentation, and high-density wiring applications, not for direct mains power connections
Buy the Multicomp Series Defense Standard 61-12 C Cable: PP000324
Order the Multicomp Series Screened Multicore Cable PP000324 online now for high-density wiring and electromagnetic interference shielding. Designed to meet Defence Standard 61-12 Part 4, this cable features electrolytic annealed tinned copper conductors, PVC insulation, and a robust black and grey PVC outer sheath. Suitable for electronic and instrumentation applications, it offers excellent flexibility with a minimum bend radius of 6 times the cable diameter, rated for 440V AC rms. Ensure reliable, durable connections for your high-performance equipment by purchasing online today.
Get Multicomp PP000324 today—built for precision, high-density wiring, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP000324?
You can click on the BUY or RFQ button to purchase PP000324 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000324?
You can download the PP000324 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP000324?
MULTICOMP PRO
